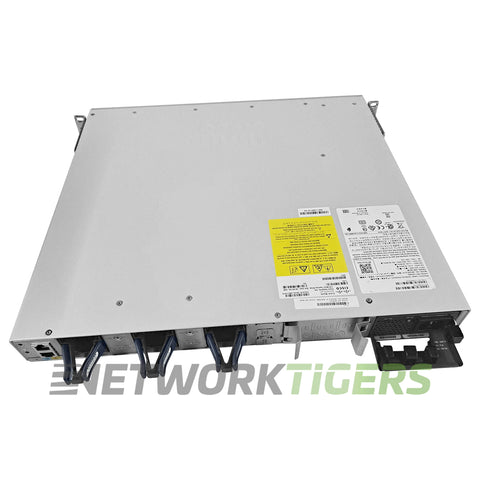

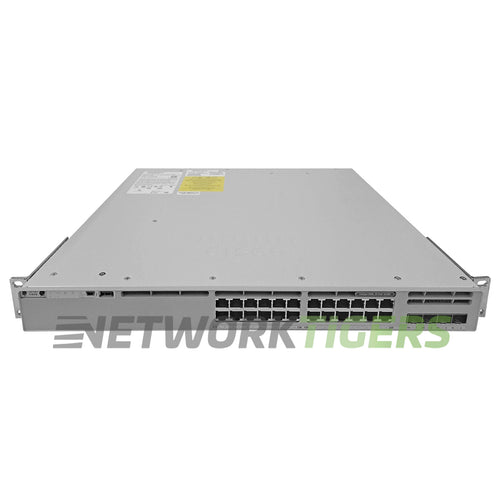

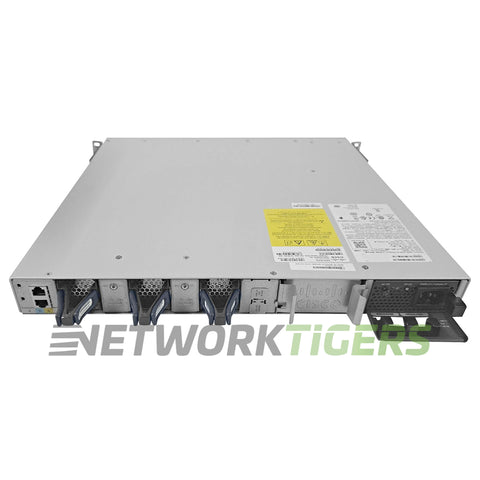

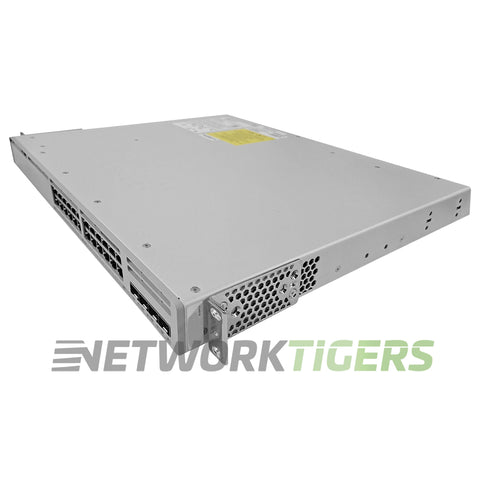

Cisco Meraki C9300L-24P-4X-M switch by Cisco is a 1U rack-mount Layer 3 switch featuring 24 x 1GbE PoE+ RJ45 ports and 4 x 10GbE SFP+ uplink interfaces. It provides 128 Gbps switching capacity and 95.23 Mpps forwarding rate, expandable to 448 Gbps and 333.33 Mpps with stacking.
The switch supports PoE+ power delivery on all 24 copper ports for connected devices such as access points, IP phones, and cameras. It includes a 32,000-entry MAC address table and supports physical stacking for higher throughput and simplified management across multiple units. Designed for rack installation, it operates as an unclaimed device suitable for deployment within Cisco Meraki managed networks.
Cisco Meraki C9300L-24P-4X-M: 24-port 1GbE PoE+ with 4x 10G/1G fixed uplinks
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 2x USB, 1x Mini USB - Managed via Cisco Meraki Dashboard
- Stack Technology : StackWise-320 (Optional Stacking Hardware - C9300L-STAK-KIT2-M - ordered separately)
- Supported Stack Members : Other C9300L SKUs with same license level (Number of Members - 8)
- Stacking Cable Options : STACK-T3-50CM-M, STACK-T3-1M-M, STACK-T3-3M-M - None Included
- Unclaimed : Yes
- Fan Module Options : 3x FAN-T2 Modules Included
- Power Supplies Included : 1x PWR-C1-715WAC-P-M Included - 2nd Power Supply ordered separately.
- Power Supply Options : PWR-C1-350WAC-P-M, PWR-C1-715WAC-P-M, PWR-C1-1100WAC-P-M - Not Included
- PoE Budget : 505W (w/ Primary PSU), 720W (w/ Secondary PSU)
- Switching Capacity : 128 Gbps (Switching Capacity with Stacking - 448 Gbps)
- Forwarding Rate : 95.23 Mpps (Forwarding Rate with Stacking - 333.33 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-24P-4X-M
- Part Number : C9300L-24P-4X-M
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco Meraki C9300L-24P-4X-M 24x 1GB PoE+ RJ45 4x 10GB SFP+ Unclaimed Switch as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
