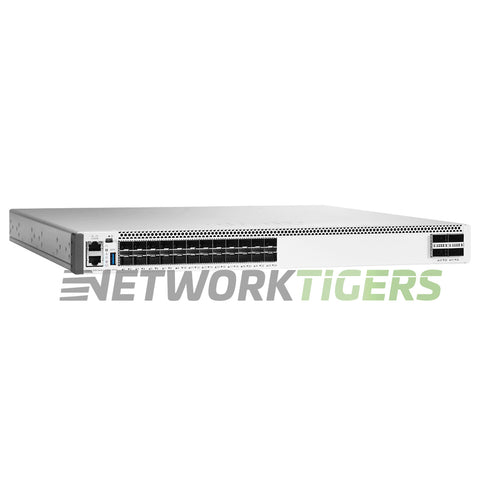

NEW Cisco C9500-24X-A 16x 10GB SFP+ Switch w/ C9500-NM-8X Module
New

NEW Cisco C9500-24X-A 16x 10GB SFP+ Switch w/ C9500-NM-8X Module

$ 23,794.99
$ 23,394.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3661
UPC: 889728133524

Overview

The Cisco C9500-24X-A 16x 10GB SFP+ Switch is a high-performance networking device with excellent switching capacity and forwarding rate. With its included C9500-NM-8X Module, it provides sixteen ports for 10 gigabit Ethernet interfaces.

This switch has a capacity of up to 960 Gbps, allowing fast and efficient data transfer within your network. It also boasts an impressive forwarding rate of up to 720 Mpps (million packets per second), ensuring smooth communication between devices.

With a MAC Address Table Size of up to 64,000 entries, this switch can easily handle large networks. Its reliable performance makes it suitable for various applications such as data centers or enterprise environments.

Cisco C9500-24X-A: Cisco Catalyst 9500 16-port 10G switch, 8 x 10GE Network Module.


Specifications

  • Network Ports : 16x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x USB, 1x Mini USB, 1x RJ45 Console, 1x Gigabit Management
  • Stacking Options : StackWise Virtual (SWV) is supported on this switch. The software is designed to connect two physical switches so they act like a single logical unit.
  • Stacking Cable Options : The user can stack 2x C9500 switches together using a high speed Ethernet cable.
  • Module Slots : 1x Expansion Module Slot - 1x C9500-NM-8X - 8x 10GB SFP+ Network Module Included - Removable
  • Module Options : C9500-NM-8X (8-port 1/10 Gigabit Ethernet with SFP/SFP+), C9500-NM-2Q (2-port 40 Gigabit Ethernet with QSFP+)
  • Switch Version : Network Advantage Version
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 5x FAN-T4-R Fans Modules
  • Power Supplies Included : 1x PWR-C4- 950WAC-R Power Supply included - 2x Slot - 2nd Power Supply ordered separately
  • Power Supply Options : PWR-C4-950WAC-R, PWR-C4-950WDC-R
  • Switching Capacity : Up to 960 Gbps
  • Forwarding Rate : Up to 720 Mpps
  • MAC Address Table Size : 64,000
  • Model Number : C9500-24X-A
  • Part Number : C9500-24X-A, C9500-24X-A=, C9500-24X-A-WS
  • Condition : New


Included

  • One (1) NEW Cisco C9500-24X-A Catalyst 9500 16x SFP+ Switch w/ C9500-NM-8X as described above
