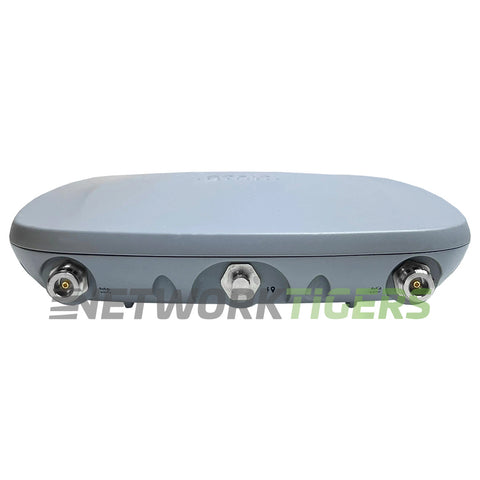

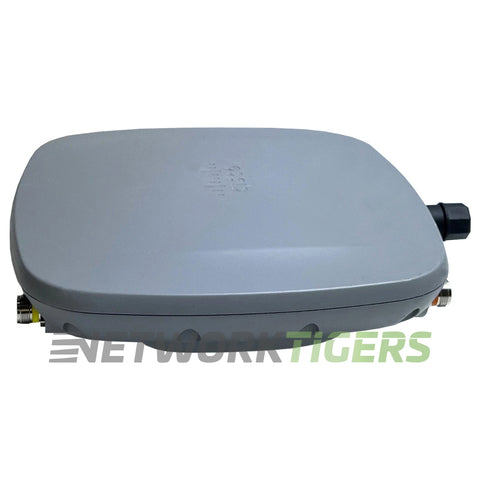

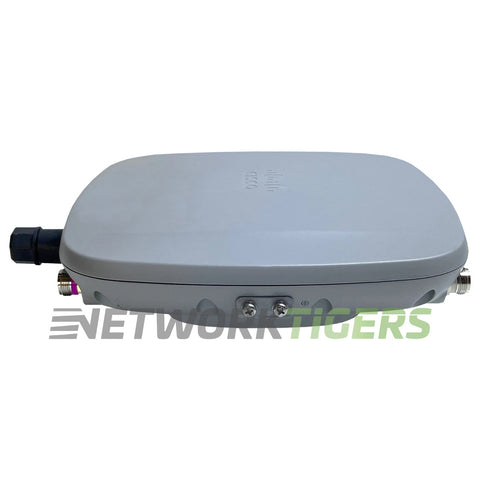

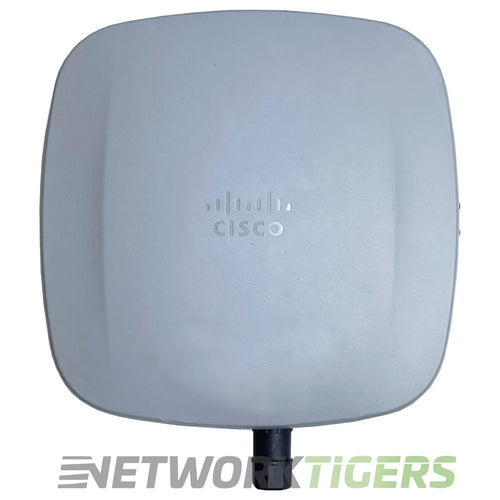

Cisco Meraki CW9163E-MR outdoor wireless access point, by Cisco, is a fixed form factor unit supporting 802.11b/g/n/ax over 2.4 GHz, 5 GHz, and 6 GHz bands with a maximum data rate of 3.9 Gbps.
The unit operates in the US regulatory domain and requires external antennas, with support for CW-ANT-O1-NS-00 and CW-ANT-D1-NS-00 models. It is designed for outdoor deployment and uses external antenna connections for coverage tuning. Power is typically supplied via PoE, and mounting options accommodate pole or wall installation.
Cisco Meraki CW9163E-MR: Outdoor high-performance on-prem or cloudmanaged Wi-Fi 6E access point for small and mediumdensity deployments.
- Wi-Fi Standard : Wi-Fi 6E (802.11ax)
- Managed By : Cloud Managed - Cisco Meraki dashboard
- Licensing : Unclaimed - Licence can be purchased directly from Meraki
- Suggested Use : Weatherized Outdoor Design
- Region : US
- Radios : 1x 2.4 GHz 802.11b/g/n/ax, 1x 5 GHz 802.11a/n/ac/ax, 1x 6 GHz 802.11ax, 1x 2.4 GHz, 5 GHz, and 6 GHz tri-band Air Marshal WIDS/WIPS, spectrum analysis, & location analytics radio
- Spatial Streams per Radio : 2
- Maximum Data Rate : 3.9 Gbps max rate
- Bluetooth / IoT Radios : 1x 2.4 GHz Bluetooth Low Energy (BLE) radio
- PoE Standard : 802.3at Power over Ethernet Plus (PoE+), 802.3af Power over Ethernet (PoE) - Cisco power injectors AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6 (Not Included)
- DRAM and Flash : 2048 MB DRAM, 1024 MB flash
- Uplink Ports : 1x 2.5 Gbps Multigigabit Ethernet port
- Other Ports : Management console port (RJ-45)
- Antenna Type : External - Omni and directional antennas
- Antenna Ports : 4x External N-type connectors (omni and directional antennas sold separately), RP-SMA active GPS/GNSS antenna connector
- Antenna Options : Antenna Not Included (CW-ANT-O1-NS-00, CW-ANT-D1-NS-00)
- Mounts Included : Not Included
- Model Number : CW9163E-MR
- Part Number : CW9163E-MR
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco Meraki CW9163E-MR 802.11ax Wi-Fi 6E Ext Antenna Outdoor Unclaimed WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
