The Cisco CW9164I-MR offers Antenna Options with Spread Spectrum Method of OFDMA, supporting Frequency Bands of 2.4 GHz, 5 GHz, and 6 GHz. Its Internal antenna can handle Data Link Protocol efficiently for IoT applications. The regulatory domain includes Bluetooth Low Energy (LE) technology for seamless connectivity.
With a Maximum Data Rate suitable for Internet of Things devices and compatibility across various communication technologies such as Wi-Fi and Bluetooth LE, the Cisco CW9164I-MR provides reliable performance in diverse environments requiring wireless connections at different frequencies.
Cisco CW9164I-MR: Meraki CW9164I cloud-managed 802.11ax compatible AP.
- Interface Ports : 1x 100M/1000M/2.5G BASE-T Ethernet RJ-45, 1x USB 2.0 Type-A (4.5W power budget)
- Uplink options : The single RJ-45 port supports speeds of 100M/1000M/2.5G and serves as both the data and uplink interface.
- Management Ports : No dedicated management port
- Antenna Ports : No external antenna ports - integrated omnidirectional antennas only
- Antenna Options : Integrated omnidirectional antennas, 3 dBi at 2.4 GHz, 5 dBi at 5 GHz, 4 dBi at 6 GHz
- Power Options : The CW9164I-MR is powered via 802.3bt UPOE (42.5 to 57V) or PoE+ 802.3at, or an alternative 54V DC input. PoE injector (MA-INJ-6) and DC adapter (MA-PWR-50WAC) sold separately.
- Frequency : 2.4 GHz, 5 GHz, 6 GHz
- Data Link Protocol : IEEE 802.11a/b/g/n/ac/ax
- Licence : Unclaimed - Licence can be purchased directly from Meraki
- Maximum Data Rate : Indoor
- Regulatory domain : 7.49 Gbps (Aggregate, Tri-band)
- Mounts : Ceiling, Wall Mount. All Cisco standard mounting hardware supported (AIR-AP-BRACKET-2 included). Compatible with AIR-AP-BRACKET-1 and AIR-AP-BRACKET-2. Ceiling tile rail support for 9/16, 15/16, or 1.5 in. flush or recessed rails
- Model Number : CW9164I-MR
- Part Number : CW9164I-MR
- Condition : Seller refurbished

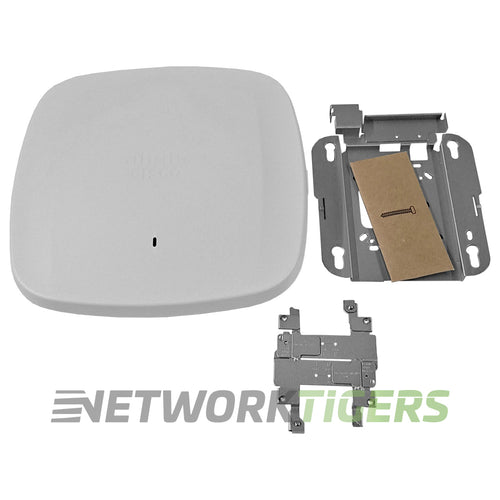

- One (1) Seller refurbished Cisco Meraki CW9164I-MR High-Performance Cloud-Managed 802.11ax Unclaimed WAP as described above
- One (1) Mount Bracket Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
