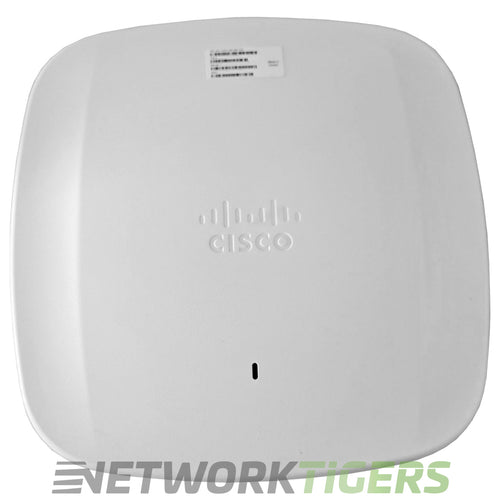

The Cisco CW9166I-MR Meraki CW9166 Series Wireless Access Point is a top-of-the-line product that offers reliable, high-speed wireless connectivity for businesses of all sizes. With its advanced features and robust design, this access point delivers exceptional performance and coverage.
Equipped with the latest 802.11ac Wave 2 technology, the CW9166I-MR provides lightning-fast speeds up to 1.7 Gbps while ensuring seamless user experience in even crowded network environments. Its intelligent beamforming technology optimizes signal strength by directing it towards connected devices automatically.
This highly secure access point supports multiple SSIDs and VLANs, allowing administrators to separate different types of traffic efficiently without compromising data integrity or privacy. The integrated firewall ensures protection against potential threats from unauthorized users.
- Wi-Fi Standard : 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
- Suggested Use : Indoor enterprise environments including offices, schools, hospitals, retail, and hotels
- Region : US
- Radios : 1x 2.4 GHz Radio (4x4 MIMO), 1x 5 GHz Radio (4x4 MIMO), 1x 6 GHz Radio (4x4 MIMO), 1x Dedicated Security/RF Radio
- Spatial Streams per Radio : 2.4 GHz, 5 GHz, 6 GHz (tri-band)
- Maximum Data Rate : 7.78 Gbps aggregate (4x4 - 2.4 GHz, 4x4 - 5 GHz, 4x4 - 6 GHz)
- Bluetooth / IoT Radios : 1x Bluetooth/IoT Radio
- PoE Standard : 802.3at (PoE+) - Up to 25W, no USB 802.3bt (UPOE) - Up to 30.5W, USB enabled at 4.5W
- DC Power Input : DC Power Adapter - 54V (sold separately)
- Uplink Ports : 1x 100/1000/2.5G/5G BASE-T Ethernet RJ45 (PoE+/UPOE)
- Other Ports : USB 2.0 host interface (Type A connector) with 4.5W power budget
- Antenna Type : Internal Omnidirectional Antenna
- Antenna Ports : N/A - Internal
- MU-MIMO : With support for features of 802.11ax, the CW9166 offers DL and UL MU-MIMO and OFDMA
- Mounting Options : All Cisco standard mounting hardware supported
- Mounts Included : AIR-AP-BRACKET-2 included
- Model Number : CW9166I-B
- Part Number : CW9166I-B
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco CW9166I-B Catalyst Wi-Fi 6E 802.11ax Internal Omnidirectional Antenna WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
