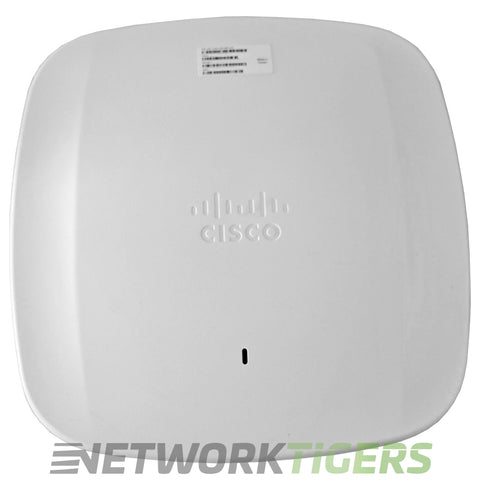

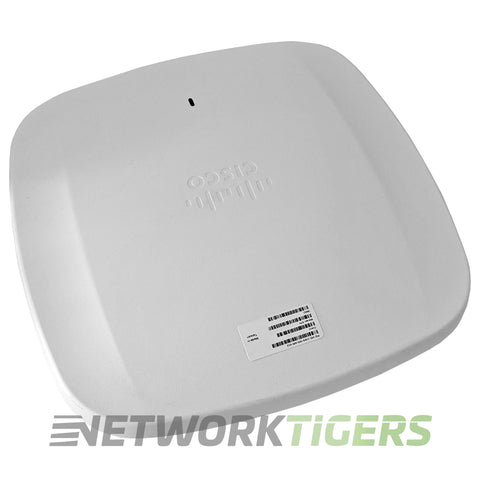

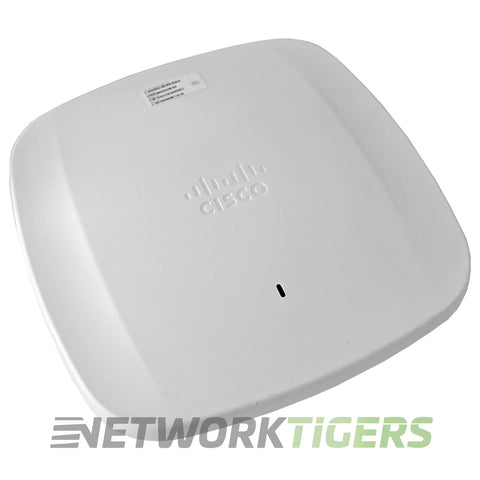

The Cisco CW9166I-MR Meraki CW9166 Series Wireless Access Point is a top-of-the-line product that offers reliable, high-speed wireless connectivity for businesses of all sizes. With its advanced features and robust design, this access point delivers exceptional performance and coverage.
Equipped with the latest 802.11ac Wave 2 technology, the CW9166I-MR provides lightning-fast speeds up to 1.7 Gbps while ensuring seamless user experience in even crowded network environments. Its intelligent beamforming technology optimizes signal strength by directing it towards connected devices automatically.
This highly secure access point supports multiple SSIDs and VLANs, allowing administrators to separate different types of traffic efficiently without compromising data integrity or privacy. The integrated firewall ensures protection against potential threats from unauthorized users.

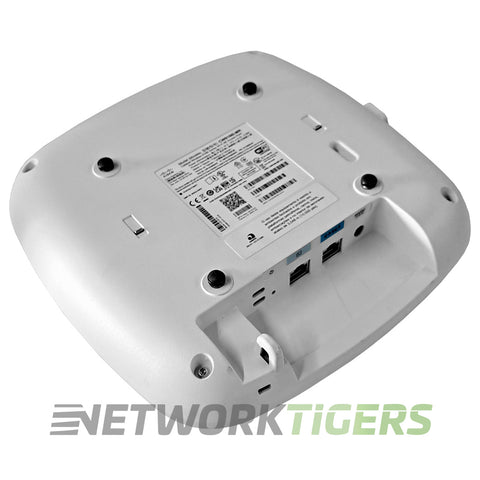

- Interface Ports : 1x 100/1000/2.5G/5G BASE-T Ethernet RJ45 (PoE+/UPOE)
- Uplink options : The CW9166I connects via a single 100/1000/2.5G/5G BASE-T Ethernet port (RJ45) supporting link speeds up to 5 Gbps
- Management Ports : 1x USB 2.0 Type-A (4.5W power budget)
- Antenna Options : Internal Omnidirectional Antenna
- Power Options : 802.3at (PoE+) - Up to 25W, no USB 802.3bt (UPOE) - Up to 30.5W, USB enabled at 4.5W - DC Power Adapter - 54V (sold separately)
- Frequency : 2.4 GHz, 5 GHz, 6 GHz (tri-band)
- Data Link Protocol : 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
- Designed for : Indoor enterprise environments including offices, schools, hospitals, retail, and hotels
- Maximum Data Rate : 7.78 Gbps aggregate (4x4 - 2.4 GHz, 4x4 - 5 GHz, 4x4 - 6 GHz)
- Regulatory domain : US
- MU-MIMO : With support for features of 802.11ax, the CW9166 offers DL and UL MU-MIMO and OFDMA
- Mounts : All Cisco standard mounting hardware supported (AIR-AP-BRACKET-2 included)
- Unclaimed : Yes - Licence can be purchased directly from Meraki
- Model Number : CW9166I-MR
- Part Number : CW9166I-MR
- Condition : New
- One (1) NEW Cisco Meraki CW9166I-MR 802.11ax Wi-Fi 6E Unclaimed Wireless AP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer\'s website or the web. Software or firmware updates may be available through the manufacturer\'s website
