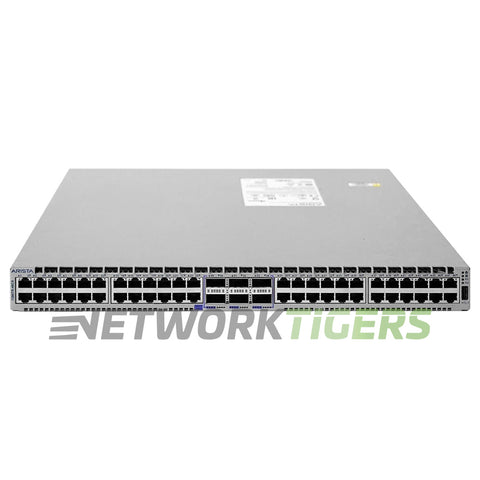

NEW Arista DCS-7280TRA-48C6-R 48x10G RJ45 6x100G QSFP AlgoMatch RF Switch Router

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-6781

Overview

The Arista DCS-7280TRA-48C6-R is a high-performance switch router for data center environments. With 48x10G RJ45 ports and 6x100G QSFP AlgoMatch RF ports, this device offers a switching capacity of up to 2.16 Tbps and a forwarding rate of up to 720 Mpps.

The MAC Address Table Size is 768,000 entries, while latency is as low as 3.8µs. This switch router provides reliable connectivity for demanding networking requirements in large-scale data centers, suited to handle heavy workloads efficiently.

With the Arista DCS-7280TRA-48C6-R, users can expect fast and scalable network performance ideal for handling intensive applications in modern data center settings where speed and reliability are essential for maintaining optimal operational efficiency.

Arista DCS-7280TRA-48C6-R 7280RA: 48x10GbE RJ45 (1/10G) & 6x100GbE QSFP switch router, AlgoMatch, rear to front air, 2x AC


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet RJ45 (1/10G)
  • Uplink Ports : 6x 100 Gigabit QSFP
  • Management Ports : 2x USB, 1x Gigabit Ethernet Management, 1x RJ45 RS-232 Serial Port
  • Additional Information : AlgoMatch
  • Packet Buffer : 4GB
  • VLAN ID's : 4096
  • Switch Version : Arista EOS - Group 2 - Min EOS = 4.19.0
  • AirFlow Direction : Back-to-Front Airflow
  • Fan Module Options : 4x FAN-7000H-R Included (N+1 redundant)
  • Power Supplies Included : 2x PWR-500AC-R Included (1+1 redundant) 500W AC
  • CPU : Quad-Core x86
  • Switching Capacity : 720 Mpps
  • Throughput : 2.16 Tbps
  • MAC Address Table Size : 768,000
  • Latency : From 3.8µs
  • DRAM and Flash : 8 GB (32GB optional) DRAM, 4GB Flash
  • Model Number : DCS-7280TRA-48C6-R
  • Part Number : DCS-7280TRA-48C6-R, JQ099A
  • Condition : New


Included

  • One (1) New Arista DCS-7280TRA-48C6-R 7280RA Series 48x 10G RJ45 6x 100G QSFP AlgoMatch R-F 2x AC Switch Router as described above
