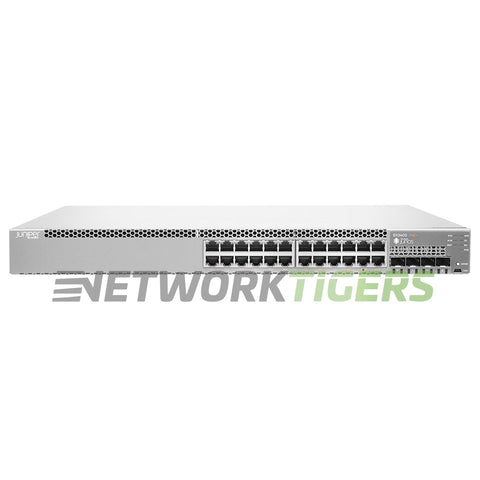

The Juniper EX3400-24P is a high-performance switch designed for modern network infrastructures. It offers 24 PoE+ RJ-45 ports, allowing you to power and connect various devices seamlessly. With 4 SFP+ and 2 QSFP+ ports, this switch provides flexibility for connecting higher-speed devices.
One notable feature of the EX3400-24P is its generous switching capacity of 288 Gbps and forwarding rate of up to 214 Mpps. This means it can handle heavy traffic loads efficiently without reducing performance.
With a MAC address table size of up to 32,000 entries, this switch allows for efficient management and connectivity across your network environment.
The EX3400-24P has a significant PoE budget between either370W or720W based on requirements ensuring sufficient power supply even in demanding scenarios.
Juniper EX3400-24P: 24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included).
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : 4x 10 Gigabit Etherenet SFP+, 2x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x Console RJ-45, 1x Gigabit RJ-45, 1x USB
- Stacking Ports : Uplink ports can be configured as Virtual Chassis interfaces and connected via standard 10G/40G optic interfaces (40G uplink ports are preconfigured by default as Virtual Chassis ports).
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 2x EX3400-FAN-AFO Fan Module
- Power Supplies Included : 1x JPSU-600-AC-AFO - 2x Slots - 2nd Power Supply ordered separately.
- PoE Budget : 370W with one power supply, 720W with a second power supply
- Switching Capacity : 288 Gbps
- Forwarding Rate : 214 Mpps
- MAC Address Table Size : 32,000
- Model Number : EX3400-24P
- Part Number : EX3400-24P
- Condition : New

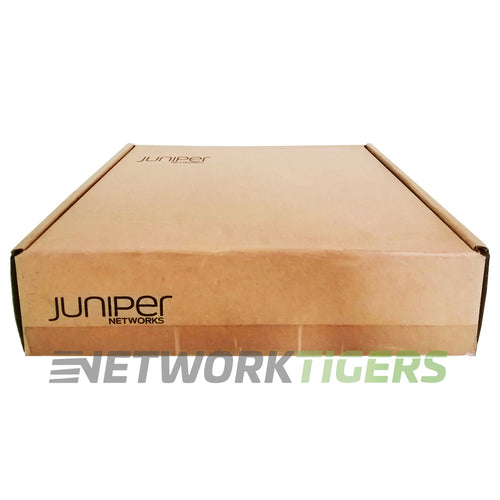

- One (1) NEW Juniper EX3400-24P 24x 1GB PoE+ RJ-45 4x 10GB SFP+ 2x QSFP+ F-B Air Switch as described above
