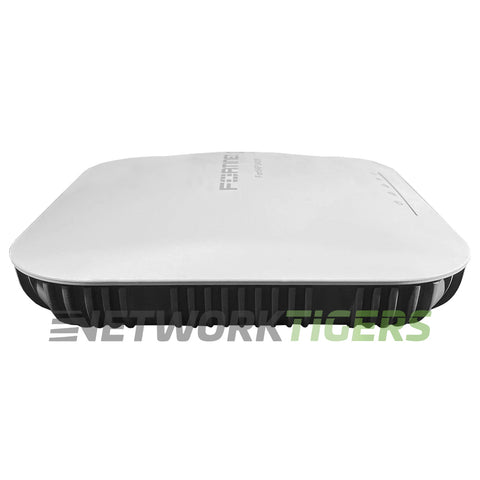

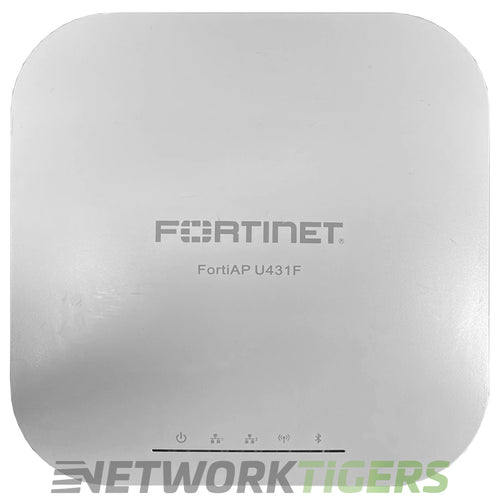

Fortinet FAP-U431F-A is a FortiAP Tri-Radio wireless access point from Fortinet in an internal-antenna ceiling-mount form factor. It supports IEEE 802.11ax (Wi-Fi 6) operation with maximum data rates up to 4,804 Mbps and provides tri-band connectivity across the 2.4 GHz and multiple 5 GHz frequency ranges.
The unit incorporates PIFA antennas rated at approximately 4 dBi for the 2.4 GHz band and 6 dBi for the supported 5‑GHz channels spanning 5.150–5.850 GHz bands per regional compliance limits. Power options include PoE+ compatible Ethernet input through standard RJ45 interfaces..
Fortinet FAP-U431F-A:: Indoor Wireless UTP AP - Tri radio (2x 802.11 a/b/g/n/ac/ax, 4x4 MIMO and 1x 802.11 a/b/g/n/ac Wave 2, 2x2 MU-MIMO), internal antennas, 1x 10/100/1000/2500 Base-T RJ45, 1x 10/100/1000 Base-T RJ45, BT/BLE, 1x Type A USB, 1x RS-232 RJ45 Serial Port. Ceiling/wall mount kit included. For power order: 802.3at PoE injector GPI-130 or AC adapter SP-FAP43F-PA-X-5. This unit is not registrable on the FortiCloud - it is set up for local management only.

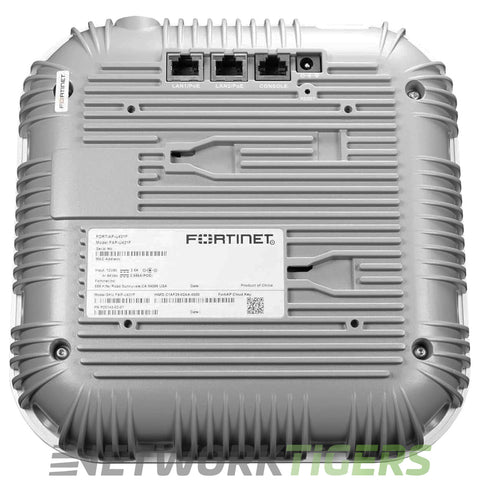

- Interface Ports : 1x 2.5 Gigabit Ethernet PoE+ RJ45, 1x 1 Gigabit Ethernet PoE+ RJ45

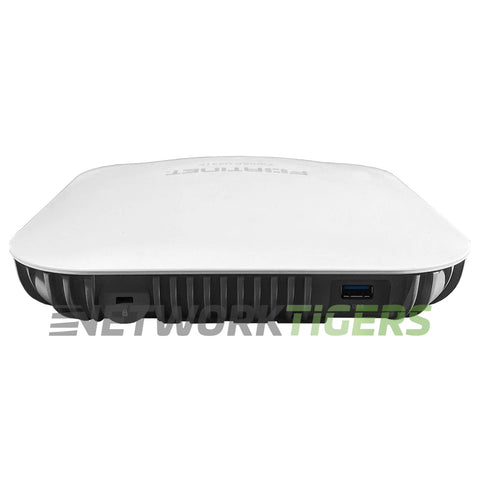

- Management Ports : 1x Type A USB, 1x RS-232 RJ45 Serial Port
- Antennas : 10 Internal + 1 BLE Internal
- Antenna Type and Information : PIFA 4 dBi for 2.4 GHz, 6 dBi for 5 GHz
- Power Options : PoE - IEEE 802.3at or dual 802.3af Power (PoE injector GPI-130 not included). SP-FAP43F-PA-X-5 Power Adapter (Not Included)
- Frequency : 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
- Registrable : No - This unit is not registrable on the FortiCloud - it is set up for local management only
- Maximum Data Rate : 4,804 Mbps
- Radios : 3 + 1 BLE
- Mounts : Mount kits for Ceiling, T-Rail, and Wall Included
- Model Number : FAP-U431F-A
- Part Number : FAP-U431F-A
- Condition : Seller refurbished
- One (1) Seller refurbished Fortinet FAP-U431F-A FortiAP Tri Radio 802.11ax Local Management Only WAP as described above
- One (1) Ceiling and One (1) Wall Mount Bracket Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
