NEW Ruckus ICX7150-48P-4X1G Brocade ICX 7150 48x 1GB PoE+ RJ45 4x 1G SFP Switch
New

NEW Ruckus ICX7150-48P-4X1G Brocade ICX 7150 48x 1GB PoE+ RJ45 4x 1G SFP Switch

$ 1,287.99
$ 1,224.99
6 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

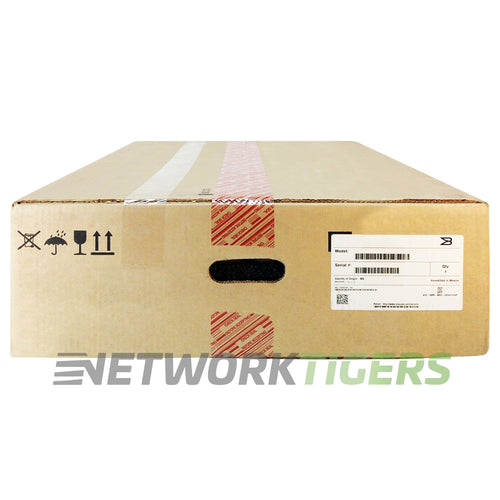

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-7943 ASK FOR QUOTE
UPC: 661470654935

Overview

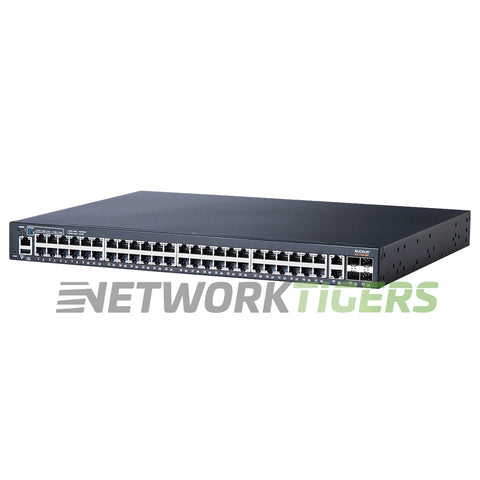

The Ruckus ICX7150-48P-4X1G Brocade ICX 7150 is a reliable switch designed for efficient network performance. With 48 PoE+ RJ45 ports and 4 SFP uplink ports, this switch offers flexibility in connecting various devices securely.

The switch has a substantial PoE budget of 370W, ensuring power delivery to compatible devices efficiently. It boasts impressive specifications such as a switching capacity of 180 Gbps and forwarding rate of 134 Mpps, making it suitable for medium-sized networks requiring high throughput. Additionally, the maximum MAC address table size supports up to 16,384 addresses enabling seamless communication between connected devices without compromising efficiency.

Ruckus ICX 7150 Switch: 48x 10/100/1000 Mbps PoE+ ports, 2x 1 GbE RJ45 uplink-ports, 4x 1 GbE SFP uplink ports upgradable to up to 4x 10 GbE SFP+ with license, 370 W PoE budget, basic Layer 3 (static routing and RIP).


Specifications

  • Network Ports : 48x Gigabit Ethernet PoE+ RJ45
  • Uplink Ports : 2x Gigabit Ethernet RJ45 Uplink, 4x 1G SFP
  • Management Ports : 1x RJ45 Serial Console, 1x RJ45 Out of Band Management, 1x USB Type C, 1x USB (for external file storage)
  • Aggregated stacking bandwidth (data rate, full duplex) : 480 Gbps
  • AirFlow Direction : Side to Back Airflow
  • Power Supplies Included : 1x Internal AC Power Supply
  • PoE Budget : 370W
  • Switching Capacity : 180 Gbps
  • Forwarding Rate : 134 Mpps
  • MAC Address Table Size : 16,384 (Maximum)
  • Model Number : ICX7150-48P-4X1G
  • Part Number : ICX7150-48P-4X1G
  • Condition : New


Included

  • One (1) New Ruckus ICX7150-48P-4X1G Brocade ICX 7150 48x GE PoE+ RJ45 4x 1G SFP Switch as described above
