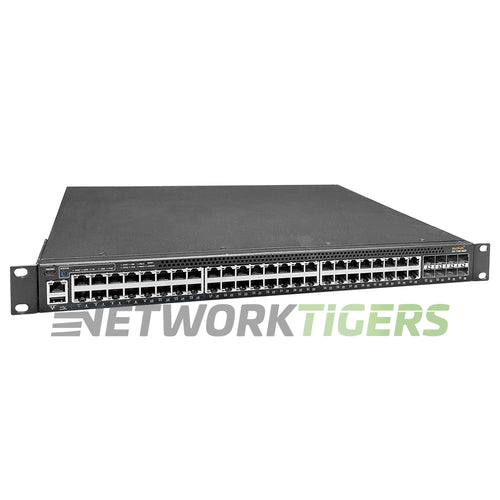

Ruckus ICX7150-48ZP-E2X10G 16x 2.5GB PoH/PoE+ 32x 1GB PoE+ 6x SFP 2x SFP+ Switch

Ruckus ICX7150-48ZP-E2X10G 16x 2.5GB PoH/PoE+ 32x 1GB PoE+ 6x SFP 2x SFP+ Switch

$ 1,439.99
Only 3 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-6264
UPC: 818214925480

Overview

The Ruckus ICX7150-48ZP-E2X10G switch is an excellent choice for network infrastructures that require high-speed and reliable connectivity. With 16 2.5GB PoH/PoE+ ports, this switch provides fast data transfer rates, making it perfect for bandwidth-intensive applications such as video streaming.

Including 32 ports of 1GB PoE+ ensures seamless power delivery to connected devices like IP phones or wireless access points without additional power sources.

Equipped with a total switching capacity of 304 Gbps and a forwarding rate of up to 226 Mpps, this versatile switch can handle heavy network traffic efficiently.

Its maximum MAC address table size supports an impressive count of 16,384 MAC addresses – enabling easy management and identification within complex networks.

Ruckus ICX 7150 Z-Series Switch: 16x 100/1000 Mbps/2.5 Gbps PoH ports, 32x 10/100/1000 PoE+ ports, 6x1 GbE SFP uplink ports and 2x 10 GbE SFP+ stacking/uplink-ports upgradable to up to 8x 10 GbE SFP+ with license, 1x 920 W AC power supply, 1 fan, 740 W PoE budget, base L3 (static routing and RIP).


Specifications

  • Network Ports : 16x 2.5 Gigabit Ethernet PoHRJ-45, 32x 1 Gigabit Ethernet PoE+ RJ-45
  • Uplink Ports : 6x 1 Gigabit Ethernet SFP, 2x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Out of Band Management, 1x USB Type C, 1x USB (for external file storage)
  • Aggregated stacking bandwidth (data rate, full duplex) : 480 Gbps
  • Flash : 2GB
  • Fan Modules AirFlow Direction : Front to Back Airflow
  • Power Supplies Included : 2x RPS20-E PSU Slots - 2x 920W PSU's Included
  • PoE Budget : 1,480 W (PoE+/PoH/802.3bt budget (up to 1,480 watts) - Up to 90W per port, IEEE 802.3bt standard pending ratification. Compatible with uPoE.
  • Switching Capacity : 304 Gbps
  • Forwarding Rate : 226 Mpps
  • Maximum MAC Addresses : 16,384
  • Rack Mounts : Included (1-RU)
  • DRAM : 1GB
  • Model Number : ICX7150-48ZP-E2X10G
  • Part Number : ICX7150-48ZP-E2X10G
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Ruckus ICX7150-48ZP-E2X10G 16x 2.5GE PoH 32x GE PoE+ 6x SFP 2x SFP+ Switch as described above
  • One (1) Power Cord Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
