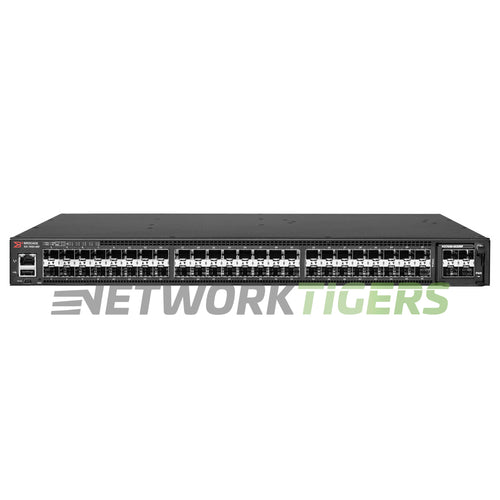

Ruckus Brocade ICX7450-48F ICX 7450 48x 1GB SFP 3x Expansion Module Slot Switch

Ruckus Brocade ICX7450-48F ICX 7450 48x 1GB SFP 3x Expansion Module Slot Switch

$ 1,299.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-7140
UPC: 688474349834

Overview

The Ruckus Brocade ICX7450-48F is a reliable and efficient network switch designed for high-performance data centers and enterprise networks. With 48x 1GB SFP ports and three expansion module slots, this switch offers flexibility in connectivity options.

Featuring a switching capacity of up to 336 Gbps (data rate, full duplex), the ICX7450-48F ensures smooth transmission of large amounts of data across your network. Its forwarding rate reaches up to an impressive 250 Mpps (data rate, full duplex), ensuring fast delivery of packets without latency issues.

This versatile switch provides seamless integration with existing infrastructure while offering optimal performance. It allows for easy scalability with its modular design that accommodates additional expansion modules as per requirements.

Ruckus ICX7450-48F: 48-port 1 GbE switch SFP with three modular slots for optional uplink/stacking ports, power supplies, fans, and modules need to be ordered separately.


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet SFP
  • Uplink Ports : See "Module Slots and Options"
  • Management Ports : 1x Mini-USB Serial (Mini-B plug), Storage - USB standard-A plug
  • Stacking Ports : Stacking is possible through the use of ICX7400-1X40GQ Module - Module not included - See "Module Slots and Options"
  • Stacking Options : It offers market-leading stacking density with up to 12 switches (576x 1 GbE and 144x 1/10 GbE ports) per stack and combines chassis-level performance with “pay as you grow” scalability of a stackable solution
  • Module Slots : 3x Expansion Module Slots - Modules are not included - Ordered Separately
  • Module Options : ICX7400-4X1GF (4-port 100 Mbps/1 GbE SFP), ICX7400-4X10GF (4-port 1/10 GbE SFP/SFP+), ICX7400-4X10GC (4-port 1/10 GbE 10GBASE-T), ICX7400-1X40GQ (1-port 40 GbE QSFP+)
  • AirFlow Direction : This switch does not include fans or PSU's. The airflow is decided by the choice of fans and PSU's. See below for options.
  • Fan Module Options : 2x Slots - None installed - Fans ordered separately - | Options are ICX-FAN10-E (Front-to-Back Airflow), ICX-FAN10-I (Back-to-Front Airflow)
  • Power Supplies Included : 2x PSU Slots - None installed - Power supplies ordered separately.
  • Power Supply Options : RPS15-E, RPS15-I, RPS16DC-E, RPS16DC-I
  • Switching Capacity : 336 Gbps (data rate, full duplex)
  • Forwarding Rate : 250 Mpps (data rate, full duplex)
  • MAC Address Table Size : 32,768
  • Latency : 1.3 μs
  • DRAM and Flash : 2 GB DRAM, 2GB Flash
  • Model Number : ICX7450-48F
  • Part Number : ICX7450-48F
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Ruckus Brocade ICX7450-48F ICX 7450 48x 1GB SFP 3x Expansion Module Slot Switch as described above
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Power Supplies Not Included
  • Fan Modules Not Included
  • Transceiver Modules Not Included
  • Network Modules Not Included
