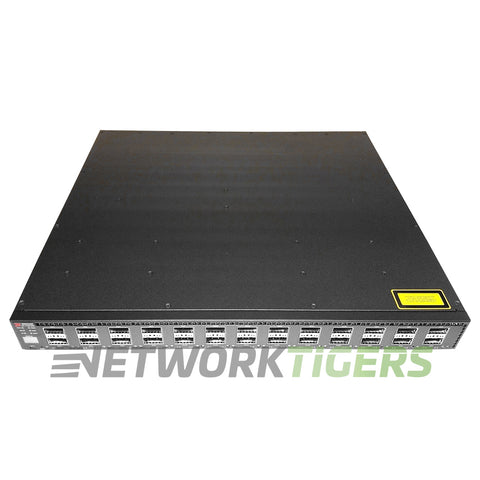

NEW Ruckus Brocade ICX7750-26Q ICX 7750 26x 40GB QSFP+ Switch
New

NEW Ruckus Brocade ICX7750-26Q ICX 7750 26x 40GB QSFP+ Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2433

Overview

The Ruckus Brocade ICX7750-26Q ICX 7750 is a high-performance switch with an impressive switching capacity of 2.56 Tbps. This switch features 26 QSFP+ ports that support up to 40GB each and provides excellent options for data centers and enterprise networks.

With its advanced features and reliable performance, the ICX7750-26Q offers seamless network scalability and flexibility while ensuring low-latency communication. Its non-blocking architecture enables efficient forwarding at maximum speed across all ports simultaneously.

This Ruckus Brocade switch incorporates redundant power supplies and fans, minimizing the risk of downtime due to hardware failures. It supports various networking protocols like Layer3 routing (OSPFv2/v3), BGP4+, VRF-Lite, and Virtual Router Redundancy Protocol (VRRP), which enhance network efficiency by enabling intelligent traffic prioritization.

Ruckus ICX7750-26Q: Ruckus ICX 7750 with 26x 40 GbE QSFP ports and modular interface slot. No power supplies or fan units (must be ordered separately). No optics. Requires ICX7750-L3-COE Certificate of Entitlement to use advanced Layer 3 features.


Specifications

  • Network Ports : 26x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x Gigabit Management, 1x mini USB (Type B) Console, 1x USB (Type A)
  • None included. Ordered separately : ICX7750-6Q
  • Fan Modules AirFlow Direction : None Included. 4 slots. Ordered Separately - ICX7750-FAN-I, ICX7750-FAN-E, ICX7750-FAN-I-SINGLE, ICX7750-FAN-E-SINGLE
  • Power Supplies Included : None Included. Ordered Separately (2 x PS slots) - RPS9+I, RPS9+E, RPS9DC+I, RPS9DC+E
  • Switching Capacity : 2.56 Tbps
  • MAC Address Table Size : Included (1-RU)
  • Model Number : ICX7750-26Q
  • Part Number : ICX7750-26Q
  • Condition : New


Included

  • One (1) NEW Ruckus Brocade ICX7750-26Q ICX 7750 26x 40GB QSFP+ Switch as described above
