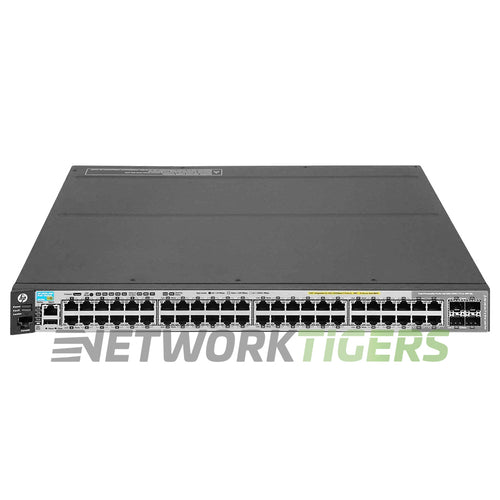

The HPE Aruba J9729A 2920-48G-PoE+ switch is an efficient and high-performing networking solution. Its powerful PoE capabilities can provide power to up to 44 devices simultaneously through the RJ-45 ports. The switch features a switching capacity of 176 Gbps, allowing for fast data transfers within the network.
With a forwarding rate of 130.9 Mpps (million packets per second), this switch ensures quick and seamless communication between connected devices. It has a MAC address table size of up to 16000 entries, enabling effective management of device connections.
With low latency at less than 3.2 µs (microseconds) for FIFO-based packet processing in gigabit mode, it guarantees minimal delays during data transmission.
Aruba J9729A: 44 RJ-45 autosensing 10/100/1000 PoE+ ports, 4x RJ-45 dual-personality 10/100/1000 PoE+ ports and 2x module slots for expansion.
- Network Ports : 44x 1 Gigabit Ethernet PoE+ RJ-45 (802.3at)
- Uplink Ports : 4x 1 Gigabit Ethernet Combo (SFP / RJ-45 PoE+ 802.3at)
- Management Ports : 1x Dual-Personality (RJ-45 or USB micro-B), 1x USB 1.1, 1x RJ-45 Out-of-Band Management
- Stacking Ports : 1x Stacking Module Slot - J9733A Stacking Module not included
- Stacking Options : Allows stacking of up to four switch units into a single virtual device
- Stacking Cable Options : J9734A (0.5m), J9735A (1m) - Cables not included
- Module Slots : 2x Expansion Slots - Modules not included
- Module Options : J9731A (2x 10GB SFP+), J9732A (2x 10GB RJ-45)
- Packet Buffer Size : 11.25 MB (6.75 MB dynamic egress + 4.5 MB ingress)
- Processor : Tri Core ARM1176 @ 625 MHz
- Power Supplies Included : 1x PSU Slot - 1x J9738A 575W 100-240VAC to 54VDC Modular Power Supply included
- PoE Budget : 370W
- Switching Capacity : 176 Gbps
- Forwarding Rate : 130.9 Mpps
- MAC Address Table Size : 16000
- Latency : < 3.2 µs (FIFO 64-byte packets) (1000Mb)
- DRAM and Flash : 512MB SDRAM | 1GB Flash
- Model Number : J9729A
- Part Number : J9729A, 2920-48G-PoE+
- Condition : Seller refurbished
- One (1) Seller Refurbished HPE Aruba J9729A 2920-48G-PoE+ 44x 1GB PoE+ RJ-45 4x Combo 2x Mod Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
