NEW HPE JH390A FlexFabric 5940 Series 48x 10GB SFP+ 6x 100GB QSFP28 Switch
New

NEW HPE JH390A FlexFabric 5940 Series 48x 10GB SFP+ 6x 100GB QSFP28 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-9323
UPC: 190017014821

Overview

The HPE JH390A FlexFabric 5940 Series Switch offers high-performance networking with a switching capacity of 2160 Gbps and forwarding rate of 1607 Mpps. With a MAC address table size of up to 288000, this switch is ideal for large networks that require efficient data handling.

The low latency of less than 1 μs ensures fast packet processing, making it suitable for time-sensitive applications. The switch provides flexible connectivity options for various network setups and is equipped with industry-standard interfaces, including 48x SFP+ ports and six QSFP28 ports.

Its high-speed capabilities make it an excellent choice for organizations looking to optimize their network performance without compromising on reliability or security features.

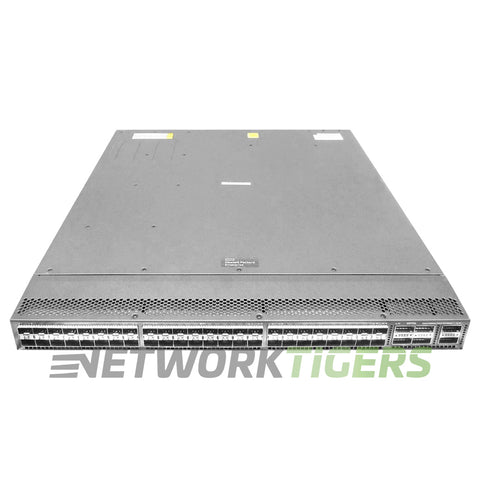

HPE JH390A: HPE FlexFabric 5940 48SFP+ 6QSFP28 Switch


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet SFP+
  • Uplink Ports : 6x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x RJ45 Serial Console, 1x RJ45 Out of Band Management, 1x SFP Out of Band Management, 1x 1GB SFP, 1x USB 2.0, 1x Mini USB 2.0
  • Fan Modules AirFlow Direction : 2x Fan Tray Slots - ordered separately
  • Power Supplies Included : 2x PSU Slots - 1x Min Required - ordered separately
  • Switching Capacity : 2160 Gbps
  • Forwarding Rate : 1607 Mpps
  • MAC Address Table Size : 288000
  • Latency : 10 Gbps Latency < 1 µs (64-byte packets)
  • Rack Mounts : Included (1-RU)
  • Model Number : JH390A
  • Part Number : JH390A
  • Condition : New


Included

  • One (1) New HPE JH390A FlexFabric 5940 Series 48x 10 Gigabit SFP+ 6x 100 QSFP28 Switch as described above
