NEW HPE Aruba JL071A 3810 Series 24x 1GB RJ-45 1x Expansion Module Slot Switch
New

NEW HPE Aruba JL071A 3810 Series 24x 1GB RJ-45 1x Expansion Module Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2196
UPC: 888793596579

Overview

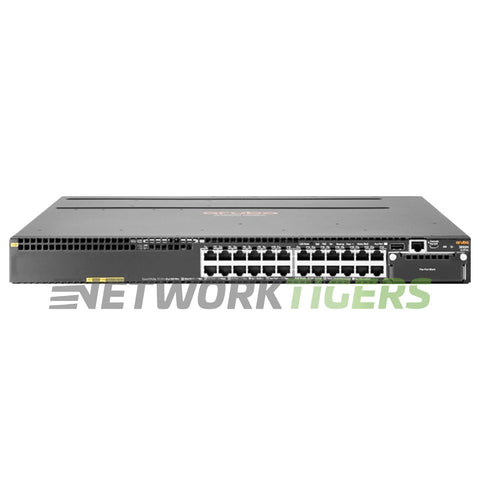

The HPE Aruba JL071A 3810 Series switch is a powerful networking solution with exceptional performance and scalability. With its 24x 1GB RJ-45 ports and an expansion module slot, it can easily handle high volumes of data traffic.

This JL071A has a switching capacity of up to 160 Gbps, ensuring fast and reliable connectivity for your network. It also boasts a forwarding rate of 95.2 Mpps (million packets per second), allowing smooth data transmission even during heavy workloads.

With a MAC address table size of 64,000 entries, this switch accommodates large networks without compromising efficiency or speed. Its low latency ensures minimal delay in packet delivery – less than 2.8 microseconds for FIFO-based packets measuring at the optimum length (64 bytes).

Aruba JL071A: 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 24 support MACSec 1 open module slot. It supports 4x SFP+ ports or 1x 40 GbE ports, with an optional module.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet RJ-45
  • Product Family : Aruba 3810 Series
  • Management Ports : 1x RJ-45 Serial Console, 1x Gigabit Management Rj-45, 1x Mini-USB Type B Console, 1x USB/AUX
  • Stacking Ports : 1x Stacking Module Slot - The JL084A Stacking Module is not included - High-performance stacking provides up to 336 Gbps of stacking throughput; each 4-port stacking module can support up to 42 Gbps in each direction per stacking port
  • Module Slots and Options : 1x Expansion Module Slot - None Included - Options are - JL079A (2x 40GB QSFP+), JL078A (1x 40GB QSFP+), JL081A (4x 10GB SFP+), JL083A (4x 10GB SFP+)
  • Stacking Cable Options : J9578A (0.5m), J9665A (1m), J9579A (3m)
  • Fan Modules AirFlow Direction : 1x JL088A Aruba 3810 Switch Fan Tray Included
  • Power Supplies Included : 2x Slots (Min 1x Required) - Ordered Separately - options are - JL085A (250W AC), JL086A (680W AC), JL087A (1050W)
  • Stacking Members : Ring, chain, and mesh topologies support up to a 10-member ring or chain and 5-member fully meshed stacks; meshed topologies offer increased resiliency vs. a standard ring
  • Switching Capacity : 160 Gbps
  • Forwarding Rate : 95.2 Mpps
  • MAC Address Table Size : 64,000
  • Latency : < 2.8 μS (FIFO 64-byte packets) (1000MB)
  • Rack Mounts : Included (1-RU)
  • Model Number : JL071A
  • Part Number : JL071A
  • Condition : New


Included

  • One (1) NEW Aruba HPE JL071A 3810 Series 24x 1GB RJ-45 1x Expansion Module Slot Switch as described above
