The NEW HPE Aruba JL664A CX 6300 Series Switch is a high-performance, reliable network switch designed for enterprise use. With its switching capacity of 880 Gbps and forwarding rate of 660 Mpps, this switch ensures fast data transmission and efficient network operations.
It features 24x1GB RJ-45 ports for connecting various devices via Ethernet cables and 4x25GB SFP56 ports for higher-speed connectivity. This HPE Aruba switch offers advanced management capabilities to simplify network administration tasks. Its intelligent design enables easy configuration and monitoring through a user-friendly interface.
Ideal for small-scale deployments or large networks requiring extensive bandwidth, the JL664A provides seamless scalability options with future-proof technology support. Whether you need enhanced security features and excellent performance in demanding applications, this switch reliably caters to diverse networking needs.

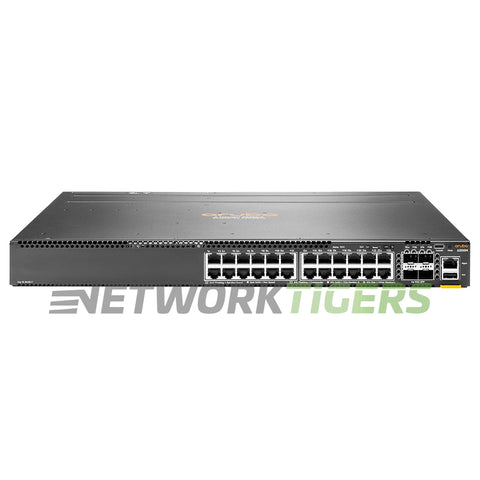

NEW HPE Aruba JL664A CX 6300 Series 24x 1GB RJ-45 4x 50GB SFP56 Switch
- Network Ports : 24x 1 Gigabit Ethernet RJ-45
- Uplink Ports : 4x 50 Gigabit Ethernet SFP56
- Management Ports : 1x USB-C Console, 1x OOBM, 1x USB Type A Host,
- Stacking Ports : The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches - up to 200 Gbps stacking bandwidth
- Stacking Options : Stacking Distance - Up to 10 kms with long range transceivers
- Fan Module Options : 2x Fan Tray Slots - 1x JL761A Fan Tray Included
- Power Supplies Included : 2x PSU Slots - None Included
- Power Supply Options : JL085A - HPE Aruba Networking X371 12VDC 250W 100-240VAC Power Supply
- Switching Capacity : 880 Gbps
- Forwarding Rate : 660 Mpps
- MAC Address Table Size : 32,768
- Latency : 1Gbps = 2.28 μSec, 10Gbps = 1.46 μSec, 25Gbps = 1.90 μSec, 50Gbps1 = 3.49 μSec
- DRAM and Flash : 8GB DDR4 32 GB eMMC
- Model Number : JL664A
- Part Number : JL664A, JL664A#ABA
- Condition : New
- One (1) NEW HPE Aruba JL664A CX 6300 Series 24x 1GB RJ-45 4x 50GB SFP56 Switch as described above
