The HPE Aruba JL762A switch is a high-performance networking solution suitable for enterprise environments. It offers versatile connectivity options with 48x 1GB RJ-45 ports and 4x 25GB SFP56 ports.
This switch has a switching capacity of up to 496 Gbps and can forward packets at an impressive rate of up to 369 Mpps (million packets per second). The MAC address table size stands at an ample count of up to32,768 addresses.
Equipped with Memory and Flash capabilities consisting of 8GB DDR4 RAM and 32GB eMMC storage, this ensures efficient operation even under heavy workloads.

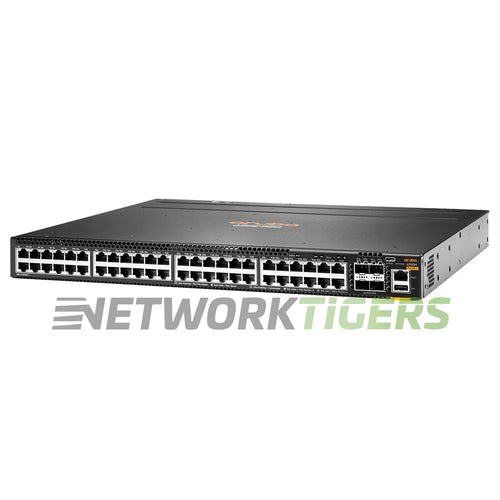

HPE Aruba JL762A: 6300M 48-port 1GbE and 4-port SFP56 Power-to-Port 2 Fan Trays 1 PSU Bundle.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45
- Uplink Ports : 4x 50 Gigabit Ethernet SFP56 (Also used as stacking ports)
- Management Ports : 1x USB-C Console Port, 1x OOBM, 1x USB Type A Host, 1x Bluetooth dongle to be used with CX Mobile App
- Stacking Ports : SFP56 Uplink ports are used for stacking - They support speeds of 1GB, 10GB, 25GB and 50GB for a total of up to 200 Gbps of stacking throughput per switch
- Stacking Options : Support for up to 10 switches (or members) in a stack via chain or ring topology
- Stacking Cable Options : 10GB = J9281D, J9283D | 25GB = JL487A, JL488A, JL489A | 50GB = R0M46A, R0M47A
- AirFlow Direction : Back-to-Front Airflow
- Fan Module Options : 2x JL761A Fan Trays Included
- Power Supplies Included : 1x JL760A PSU Included - 2x Slots
- Power Supply Options : JL760A is the only option
- PoE Budget : 2880 W
- Switching Capacity : 496 Gbps
- Forwarding Rate : 369 Mpps
- MAC Address Table Size : 32,768
- DRAM and Flash : 8GB DDR4, 32GB eMMC
- Model Number : JL762A
- Part Number : JL762A, JL762A#ABA
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba JL762A 48x 1GB RJ-45 4x 25GB SFP56 Back-to-Front Airflow Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Two (2) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
