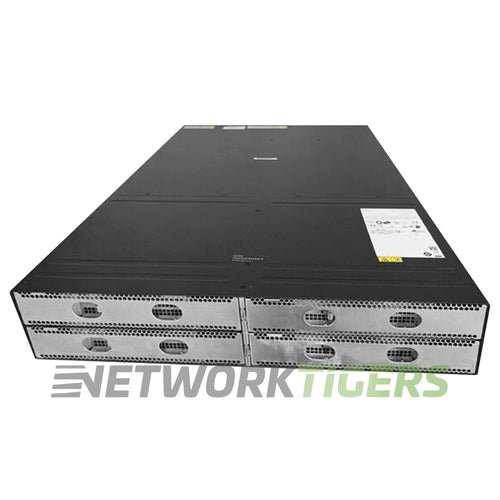

HPE JQ076A FlexFabric 5945 Series 4x Expansion Module Slots 2x 1GB SFP Switch

HPE JQ076A FlexFabric 5945 Series 4x Expansion Module Slots 2x 1GB SFP Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-0395
UPC: 190017209685

Overview

The HPE JQ076A FlexFabric 5945 Series is a high-performance switch designed for data centers, offering exceptional flexibility and scalability. It comes with four expansion module slots, allowing you to expand your network as needed quickly.

This switch's notable feature is its two 1GB SFP ports. These Small Form-factor Pluggable (SFP) ports enable flexible connectivity options by supporting fiber optics or copper cables.

With its advanced capabilities, the HPE JQ076A helps optimize network performance while ensuring low latency and efficient traffic management. It supports various protocols like Virtual Extensible LANs (VXLAN), Open Shortest Path First (OSPF), Border Gateway Protocol (BGP), etc., enhancing interoperability within complex networking environments.


Specifications

  • Network Ports : See "Module Slots" - Supports up to a maximum of 96x 10/25GB and 8x 100GB ports, or up to 32x 100GB
  • Management Ports : 1x Console RJ-45, 1x Mini USB, 1x USB, 2x Out of Band Management Ports (1x Fiber, 1x Copper)
  • Module Slots : 4x Expansion Module Slots - None Included (Ordered Separately)
  • Module Options : JH180A, JH181A, JH181A, JH183A, JL865A, JH184A, JH184A, JH405A, JH406A, JH450A, JH957A
  • Fan Module Options : 2x Fan Tray Slots - None Included (Ordered Separately) - Options are JH185A, JH186A
  • Power Supplies Included : 4x PSU Slots - 2x Required - None Included (Ordered Separately)
  • Power Supply Options : JC680A (650W AC), JH336A (650W DC)
  • Switching Capacity : 6.4 Tbps
  • Forwarding Rate : 2024 Mpps
  • MAC Address Table Size : 288K (Routing Entries = 324K entries (IPv4), 162K entries (IPv6))
  • Latency : < 1 s (64-byte packets)
  • DRAM and Flash : 1 GB Flash, Packet buffer size = 32 MB, 8GB SDRAM
  • Model Number : JQ076A
  • Part Number : JQ076A
  • Condition : Seller refurbished

Datasheet

More information on this HPE JQ076A.

Included

  • One (1) Seller refurbished HPE JQ076A FlexFabric 5945 Series 4x Expansion Module Slots 2x 1GB SFP Switch as described above

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Power Supplies Not Included
  • Network Modules Not Included
  • Transceiver Modules Not Included
  • Fan Modules Not Included
