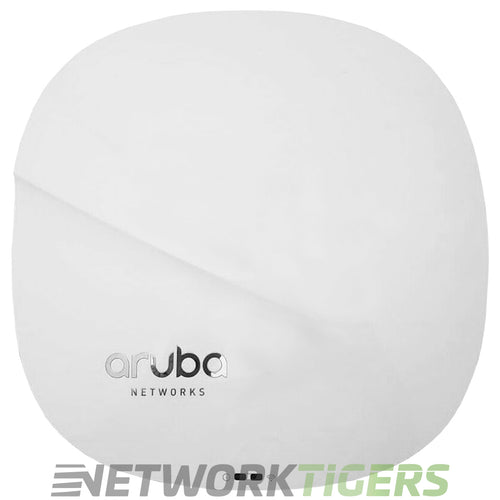

The HPE Aruba JZ033A AP-345 (US) is a wireless access point manufactured by Hewlett Packard Enterprise. It features a dual-radio internal antenna form factor and supports IEEE 802.11a/b/g/n/ac protocols with MU-MIMO 4x4:4 configuration. The unit provides transmission speeds up to 2166 Mbps on the US regulatory domain.
This model operates in both 2.4 GHz and 5 GHz frequency bands, allowing compatibility across various client devices supporting different Wi-Fi standards. The device includes Ethernet ports for uplink connectivity, using Power over Ethernet (PoE) as its primary power source—eliminating the need for external adapters when used with compatible switches or injectors. Designed for ceiling or wall mounting where applicable brackets are used based on deployment needs, it suits installations requiring flexible positioning options while maintaining centralized management via controller-based configurations within Aruba systems.
Aruba JZ033A: Aruba AP-345 (US) Dual 4x4:4 MU-MIMO Radio Internal Antennas Smart Rate Unified Campus AP.
- Interface Ports : 1x HPE SmartRate port, 1x 1 Gigabit RJ45
- MIMO Technology : MU-MIMO (Wave 2)
- Management Ports : 1x USB 2.0
- Antenna Ports : 8x Internal Omni Directional Downtilt Antennas
- Power Options : Power over Ethernet (PoE) - 48Vdc (nominal) 802.3af/802.3at compliant source | Direct DC source - 48Vdc nominal, +/- 5% - Power Sources sold separately (Injector and Power Adapter)
- Frequency : 2.4 GHz, 5 GHz
- Data Link Protocol : IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Wireless LAN Standard : IEEE 802.11ac
- Maximum Data Rate : 2166 MBps
- Regulatory domain : US
- Capacity : BSSIDs per radio -16, Wireless clients per Wi-Fi radio - 256
- Mounts : The AP ships with two (black) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling (JW045A)
- Model Number : JZ033A
- Part Number : JZ033A, AP-345
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba JZ033A AP-345 (US) Dual Radio 802.11ac 4x4:4 MU-MIMO Internal Ant WAP as described above
- One (1) Mount Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
