The HPE Aruba JZ342A AP-534 (US) is a dual-radio 802.11ax wireless access point with MU-MIMO and OFDMA technology, offering aggregate bandwidth of up to 3.55 Gbps across both the 2.4 GHz and 5 GHz frequencies.
With a maximum data rate of 1.150 Mbps on the 2.4GHz band and up to an impressive speed of up to 2.4 Gbps on the faster frequency band for high-performance connectivity needs in US regulatory domain environments.
This TAA-compliant WAP delivers reliable wireless connections suitable for various applications within American settings that require advanced networking capabilities at scale thanks its robust design capable enough resolving demanding user activities effectively due transmit or receive processing power optimization which can support large number device mac addresses management.

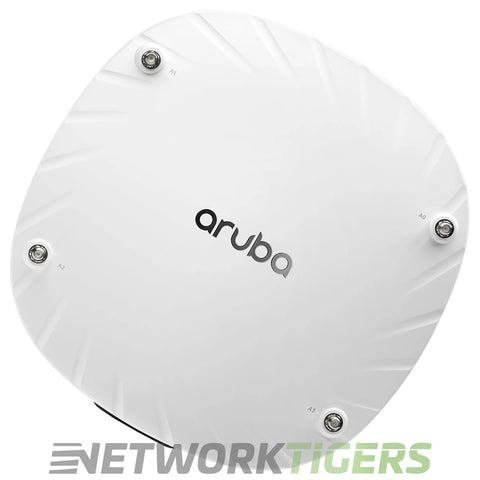

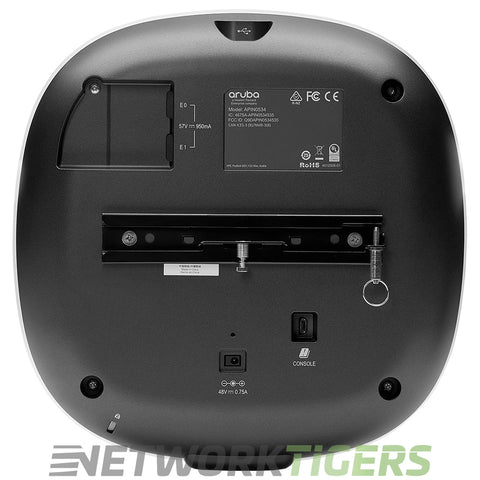

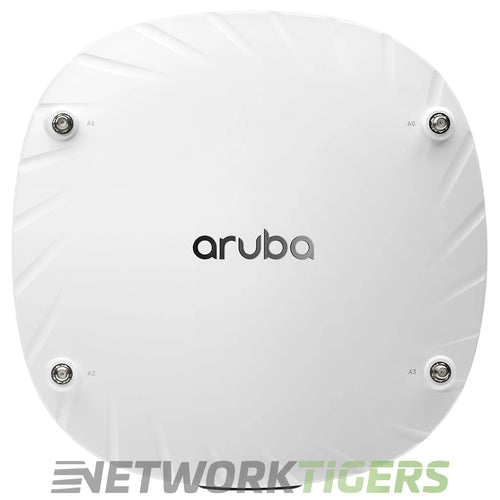

HPE Aruba JZ342A AP-534 (US) Dual Radio 802.11ax 4x4:4 MU-MIMO OFDMA TAA WAP
- Wi-Fi Standard : Wi-Fi 6 (802.11ax) - OFDMA - Bidirectional MU-MIMO (uplink and downlink in 5 GHz - downlink only in 2.4 GHz)
- Managed By : HPE Aruba Networking Central (cloud) or on-premises controller/gateway
- TAA : Yes
- Suggested Use : Indoor enterprise campus environments
- Region : US
- Radios : Dual radio - 5 GHz 802.11ax 4x4 MIMO and 2.4 GHz 802.11ax 4x4 MIMO
- Spatial Streams per Radio : 4
- Maximum Data Rate : 2.97 Gbps combined (2.4 Gbps @ 5 GHz HE80 - 574 Mbps @ 2.4 GHz HE20)
- Bluetooth / IoT Radios : Bluetooth 5.0 BLE and Zigbee (802.15.4) - 2.4 GHz
- PoE Standard : 802.3at (class 4) or 802.3bt (class 5) on E0 and/or E1
- DC Power Input : 48 Vdc nominal (+/-5%) - 1.35 mm / 3.5 mm center-positive circular plug - 9.5 mm length
- Uplink Ports : 2x 100/1000/2500/5000BASE-T HPE SmartRate RJ-45 (E0 and E1)
- Other Ports : USB 2.0 Type-A (up to 1A/5W) - Serial console (micro-B USB), 1x Kensington security slot
- Antenna Type : External - requires external dual-band antennas (sold separately)
- Antenna Ports : 4x RP-SMA female connectors (A0 through A3) for external dual-band antennas
- Antenna Options : AP-ANT-1W (JW009A) - AP-ANT-13B (JW001A) - AP-ANT-19 (JW004A) - AP-ANT-20W (JW011A) - AP-ANT-40 (JW017A) - AP-ANT-45 (JW018A) - all sold separately
- Mounting Options : Sold Separately - R3J15A (Type A, flat rail 9/16), R3J16A (Type B, flat rail 15/16), R3J17A (Type C, profile rail 9/16), R3J18A (Type D, solid surface), R3J19A (Type E, wall-box)
- Mounts Included : Mounting bracket pre-installed on back of unit - additional mount kits sold separately
- Model Number : JZ342A
- Part Number : JZ332A, AP-534, AP-534-TAA, APIN0534
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-534 JZ342A US TAA Wi-Fi 6 802.11ax External Antennas Campus WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
