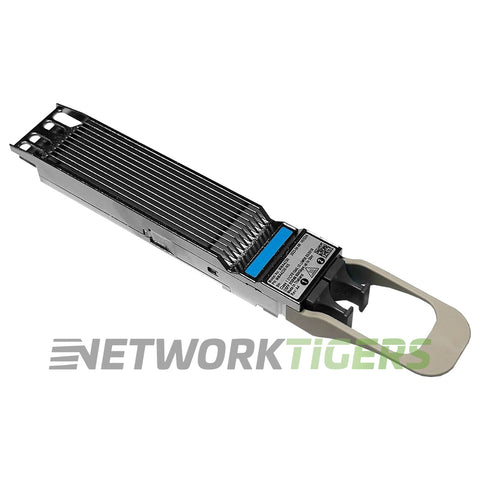

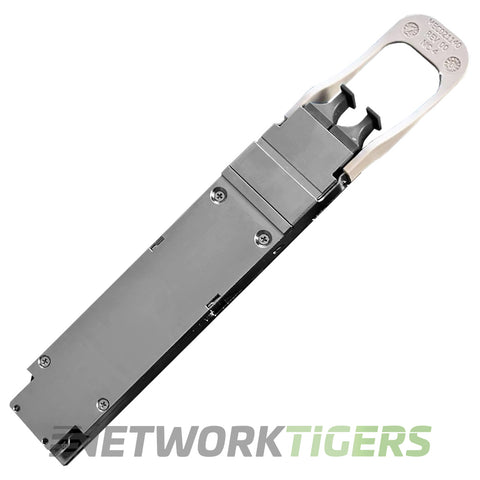

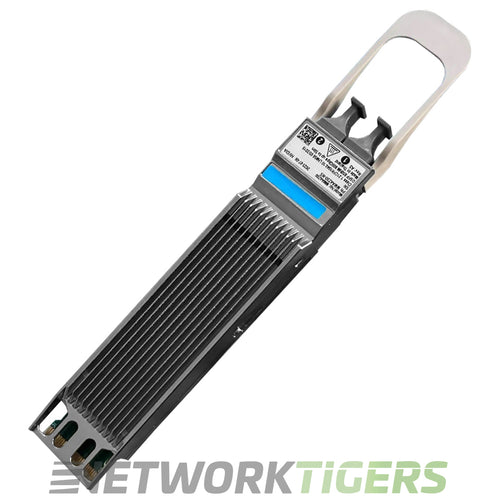

The nVidia Mellanox MMA4Z00-NS is an 800GB optical transceiver manufactured by nVidia, using the OSFP form factor. It supports a transmission speed of 800 Gigabit and operates over MMF cabling via dual MTP/MPO-12 APC connectors at a wavelength of 850nm.
This module delivers short-reach data transfer up to 50 meters over multimode fiber (MMF) with SR4 signaling across two parallel fibers per direction. Designed for high-bandwidth connections in compatible servers or switches supporting OSFP ports, it accommodates dense configurations requiring parallel optic connectivity.
nVidia Mellanox MMA4Z00-NS: The NVIDIA MMA4Z00-NS is an InfiniBand and Ethernet 800Gb/s 2x400Gb/s Twin-port OSFP, SR8 (2xSR4) multimode, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 400Gb/s each.
- Form Factor : OSFP
- Speed : 800 Gigabit
- Wavelength : 850nm
- Cable Type : MMF
- Connection Type : Dual MTP/MPO-12 APC
- Cable Distance : 50m
- Digital Optical Monitoring : Yes
- Model Number : MMA4Z00-NS
- Part Number : MMA4Z00-NS
- Condition : Seller refurbished
- One (1) Seller refurbished nVidia Mellanox MMA4Z00-NS 800GB 2x SR4 MMF 850nm 50m DOM Transceiver OSFP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
