The Cisco Meraki MR46-HW is a high-performance Wi-Fi 6 (802.11ax) indoor access point managed from the Meraki cloud dashboard. It is built for the busiest indoor spaces: open-plan offices, lecture halls, conference centers, hospitals, and retail floors where hundreds of devices share the air on both bands.
It runs 4x4:4 on both 2.4 GHz and 5 GHz, for up to 2.98 Gbps combined radio rate, plus a dedicated dual-band radio that scans full-time for security threats and RF interference, and a Bluetooth Low Energy radio. It connects through a 2.5 Gbps multigigabit uplink (RJ45) and needs 802.3at PoE+ (30 W maximum) or a 12 V DC adapter.
Choose the MR46 over the MR44 when 2.4 GHz clients matter as much as 5 GHz: it runs four spatial streams on both bands, whereas the MR44 runs two on 2.4 GHz. For aimed coverage with external antennas, see the MR46E. It mounts with the MA-MNT-MR-15 kit and is sold unclaimed, so you can claim it into your own Meraki organization. A Meraki license is required and is sold separately. Covered by our 365-day warranty.
NEW Cisco Meraki MR46-HW: Wi-Fi 6 802.11ax, 4x4:4 dual-band, internal antennas, up to 2.98 Gbps, dedicated scanning radio, BLE, 2.5 Gbps multigigabit uplink, 802.3at PoE+, unclaimed.
- Wi-Fi Standard : Wi-Fi 6 (802.11ax)
- Managed By : Cloud Managed
- Licensing : Licence is not included - this can be purchased directly from Meraki - this unit is unclaimed.
- Suggested Use : Designed for next-generation deployments in offices, schools, hospitals, shops, and hotels
- Region : US
- Radios : 1x 2.4 GHz 802.11b/g/n/ax client access radio, 1x 5 GHz 802.11a/n/ac/ax client access radio, 1x 2.4 GHz and 5 GHz dual-band WIDS/WIPS, spectrum analysis, and location analytics radio
- Spatial Streams per Radio : 4
- Maximum Data Rate : 3.5 Gbps
- Bluetooth / IoT Radios : 1x 2.4 GHz Bluetooth Low Energy Radio
- PoE Standard : Power over Ethernet - 42.5 - 57 V (802.3at compliant) - Poe Injector (MA-INJ-4-US or MA-INJ-5-US) not included
- DC Power Input : 12V DC Input - Power Adapter (MA-PWR-30W-US) sold separately.
- Uplink Ports : 1x 2.5 Gigabit Ethernet PoE RJ45
- Antenna Type : Internal Omni-Directional Antenna (5.4 dBi gain at 2.4 GHz, 6 dBi gain at 5 GHz)
- Antenna Ports : None - Internal
- Mounting Options : MA-MNT-MR-15
- Model Number : MR46-HW
- Part Number : MR46-HW, MR46-HW=, MR46-HW-WS
- Condition : New

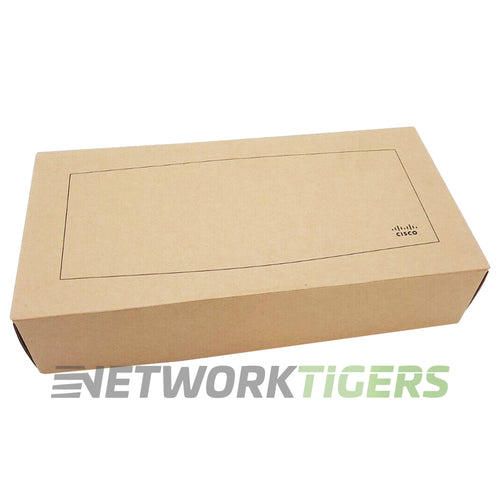

- One (1) New Cisco MR46-HW Meraki MR46 Series Wi-Fi 6 802.11ax Internal Omni-Directional Antenna Unclaimed Wireless Access Point as described above
