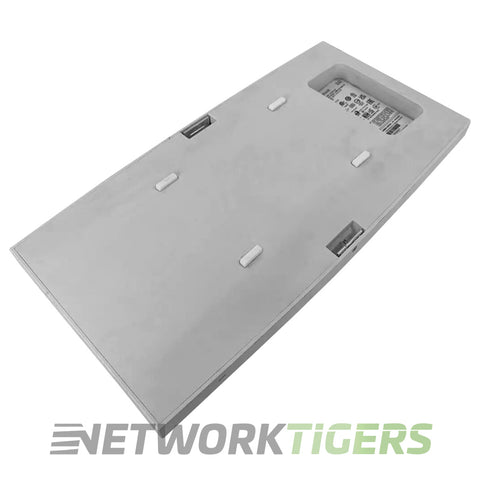

The Cisco Meraki MR46E-HW is the external-antenna version of the MR46, a high-performance Wi-Fi 6 (802.11ax) access point managed from the Meraki cloud dashboard. Choose it when a standard AP's built-in antennas won't do the job: warehouses, factory floors, gyms, auditoriums, lecture halls, and other high-ceiling or oddly shaped spaces where you need to aim coverage with directional or sector antennas.
It runs 4x4:4 on both 2.4 GHz and 5 GHz, for up to 2.98 Gbps combined radio rate, plus a dedicated dual-band radio that scans full-time for security threats and RF interference, and a Bluetooth Low Energy radio. It connects through a 2.5 Gbps multigigabit uplink (RJ45) and runs on 802.3at PoE+ (30 W maximum) or a 12 V DC adapter.
Antennas are not included. The MR46E works with the Meraki MA-ANT-3 series (A6, B6, C6, D6, E6 and F6), so you pick the pattern that fits the space. For a ceiling or wall AP with built-in antennas, see the MR46. Cisco supports the MR46E until December 31, 2031. Sold unclaimed, so you can claim it into your own Meraki organization. A Meraki license is required and is sold separately. Covered by our 365-day warranty.
Cisco Meraki MR46E-HW: Wi-Fi 6 802.11ax, 4x4:4 dual-band, external antenna, up to 2.98 Gbps, dedicated scanning radio, BLE, 2.5 Gbps multigigabit uplink, 802.3at PoE+, unclaimed. Antennas sold separately.
- Wi-Fi Standard : Wi-Fi 6 (802.11ax)
- Managed By : Cloud Managed - Meraki Dashboard
- Licensing : Licence can be purchased directly from Meraki - This unit is unclaimed
- Suggested Use : Indoor
- Region : US
- Radios : 4x Radios - 1x 2.4 GHz 802.11b/g/n/ax Client Radio, 1x 5 GHz 802.11a/n/ac/ax Client Radio, 1x 2.4 & 5 GHz Dual-Band WIDS/WIPS & Spectrum Analysis Radio, 1x 2.4 GHz Bluetooth Low Energy Radio)
- 4 (4x4 : 4 MU-MIMO on both 2.4 GHz and 5 GHz)
- Maximum Data Rate : 3.55 Gbps
- Bluetooth / IoT Radios : Bluetooth Low Energy (BLE) with Beacon and BLE Scanning
- PoE Standard : 802.3at (PoE+) - MA-INJ-4-US or MA-INJ-5-US PoE injectors are sold separately
- DC Power Input : 12V DC (5.5mm x 2.5mm, centre positive) - MA-PWR-30W-US are sold separately
- Uplink Ports : 1x 100/1000/2.5G BASE-T Ethernet PoE+ RJ-45
- Antenna Type : External Antenna

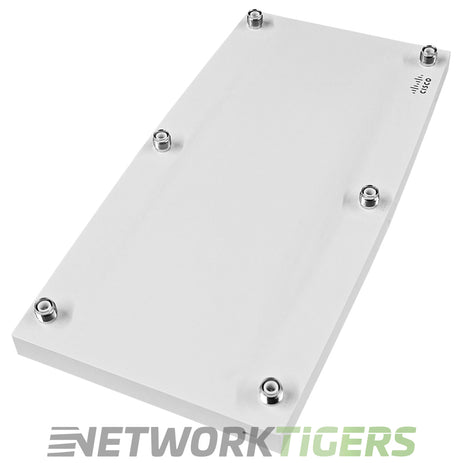

- Antenna Ports : 6x RP-TNC connectors - Antennas are ordered separately
- Antenna Options : MA-ANT-3-A6, B6, C6, D6, E6, F6
- Mounting Options : MA-MNT-MR-18 (Desktop, Ceiling, Wall) - All Standard Mounting Hardware Included
- Mounts Included : MA-MNT-MR-18 Kit is Included - includes a mount plate, drop ceiling clips with set screws, two 6-32x4mm flush T-rail screws, two 6-32x7mm recessed T-rail screws, two rubber spacers, four wall screws, anchors, and security screws. May be third party.
- Model Number : MR46E-HW
- Part Number : MR46E-HW, MR46E-HW=, MR46E-HW-WS, MR46E
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco MR46E-HW Meraki MR46 Series Wi-Fi 6 802.11ax External Antenna Unclaimed Wireless Access Point as described above
- One (1) MA-MNT-MR-18 Mount Kit Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
- Power Adapter Not Included
- Licenses are sold directly by Meraki
- Antennas Not Included
