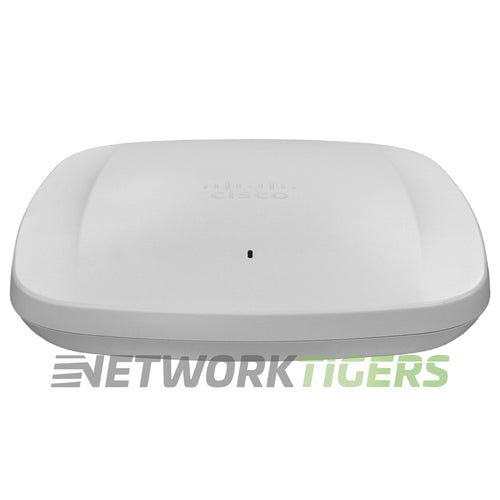

The Cisco Meraki MR57-HW is a powerful wireless access point that supports the latest 802.11ax Wi-Fi standard, providing fast connectivity for your network. This AP ensures efficient network traffic distribution with tri-band capabilities over frequencies of 2.4 GHz, 5 GHz, and 6 GHz band.
Featuring advanced MU-MIMO technology with four streams per radio (4:4), it enables simultaneous connections to multiple devices without reducing performance or speed. Its three radios consist of a dedicated Air Marshal WIDS/WIPS (Wireless Intrusion Detection System/Wireless Intrusion Prevention System) radio operating across all frequency bands to ensure optimal security.
In addition to its impeccable data link protocols supporting CA Radio on both the 2.4 GHz and 5GHz bands, as well as a specifically designated Bluetooth radio at the lower-frequency end spectrum hence, you can expect uninterrupted communication within close range via mobile devices equipped with Bluetooth connectivity features such as smartphones or tablets.
Cisco Meraki MR57: 2x 5 Gigabit Ethernet PoE+ RJ45, 1x DC power connector (5.5 mm x 2.5 mm, center positive)
- Interface Ports : 2x 100M/1000M/2.5G/5G Multigigabit Ethernet RJ-45, 1x USB 2.0 Type-A (9.5W power budget)
- Uplink options : Both RJ-45 ports support 100M/1000M/2.5G/5G speeds and can be used for uplink, high availability, or link aggregation.
- Management Ports : Cloud Managed
- Antenna Ports : No external antenna ports — integrated omni-directional antennas only
- Antenna Options : Integrated omni-directional antennas, 4.5 dBi at 2.4 GHz, 5.5 dBi at 5 GHz, 5.5 dBi at 6 GHz
- Power Options : The MR57-HW is powered via 802.3bt PoE (42.5 to 57V) or an alternative 54V DC input. Minimum power requirement is 30W via PoE+ (USB disabled). Maximum power consumption is 40W. PoE injector (MA-INJ-6) and DC adapter (MA-PWR-50WAC) sold separately.
- Frequency : 2.4 GHz, 5 GHz, 6 GHz
- Data Link Protocol : IEEE 802.11a/b/g/n/ac/ax
- Designed for : Indoor
- Maximum Data Rate : 7.78 Gbps (Aggregate, Tri-band)
- Regulatory domain : US (FCC)
- Unclaimed : Yes - License is not included. This is sold directly by Meraki.

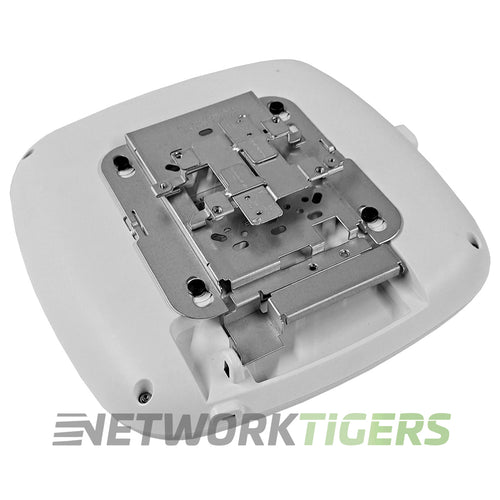

- Mounts : Desktop, Ceiling, Wall Mount. All standard mounting hardware included (AIR-AP-BRACKET-2). Compatible with AIR-AP-BRACKET-1 and AIR-AP-BRACKET-2. Ceiling tile rail support for 9/16, 15/16, or 1.5 in. flush or recessed rails.
- Model Number : MR57-HW
- Part Number : MR57-HW
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco Meraki MR57-HW 802.11ax Wi-Fi 6E Tri-Band 4:4 MU-MIMO Unclaimed WAP as described above \
- One (1) Wall Mount Bracket Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
