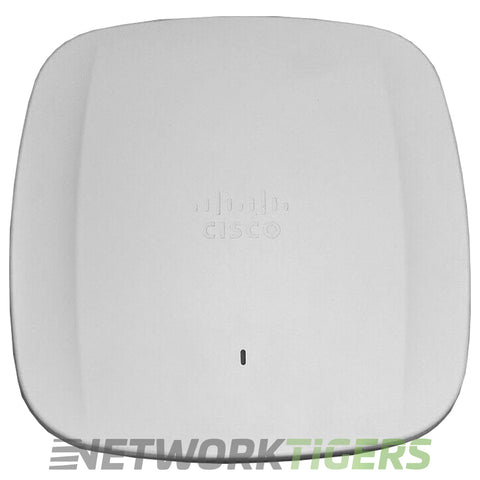

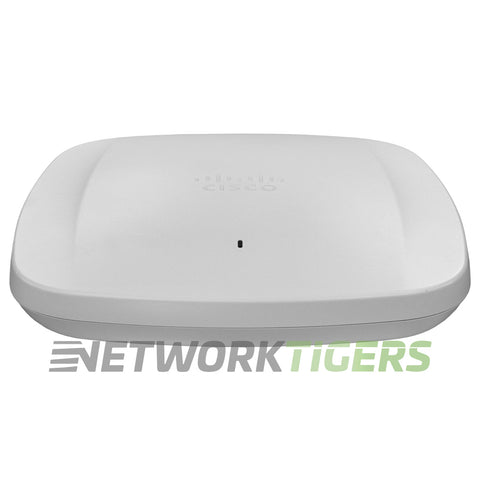

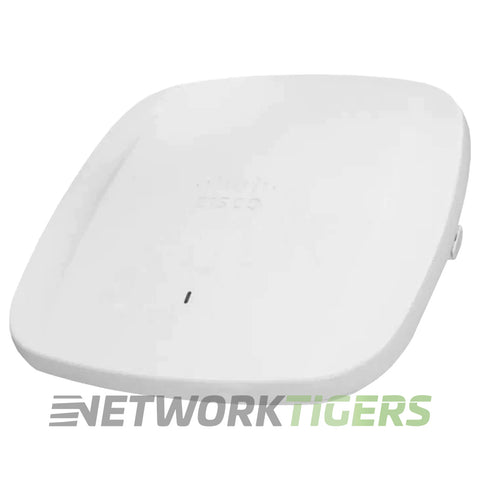

NEW Cisco Meraki MR57-HW Wi-Fi 6E 802.11ax Internal Ant Unclaimed WAP w/ Mount

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-0191
UPC: 810979018223

Overview

The Cisco Meraki MR57-HW is a powerful wireless access point that supports the latest 802.11ax Wi-Fi standard, providing fast connectivity for your network. This AP ensures efficient network traffic distribution with tri-band capabilities over frequencies of 2.4 GHz, 5 GHz, and 6 GHz band.

Featuring advanced MU-MIMO technology with four streams per radio (4:4), it enables simultaneous connections to multiple devices without reducing performance or speed. Its three radios consist of a dedicated Air Marshal WIDS/WIPS (Wireless Intrusion Detection System/Wireless Intrusion Prevention System) radio operating across all frequency bands to ensure optimal security.

In addition to its impeccable data link protocols supporting CA Radio on both the 2.4 GHz and 5GHz bands, as well as a specifically designated Bluetooth radio at the lower-frequency end spectrum hence, you can expect uninterrupted communication within close range via mobile devices equipped with Bluetooth connectivity features such as smartphones or tablets.

Cisco Meraki MR57: 2x 5 Gigabit Ethernet PoE+ RJ45, 1x DC power connector (5.5 mm x 2.5 mm, center positive)


Specifications

  • Wi-Fi Standard : Wi-Fi 6E (802.11ax)
  • Managed By : Cloud Managed
  • Licensing : This unit is unclaimed - License is not included. This is sold directly by Meraki.
  • Suggested Use : Indoor - Designed for next-generation deployments in offices, schools, hospitals, retail shops, and hotels
  • Region : US (FCC)
  • Radios : 1x 2.4 GHz 802.11b/g/n/ax client access radio, 1x 5 GHz 802.11a/n/ac/ax client access radio, 1x 6 GHz 802.11ax client access radio, 1x Dedicated tri-band (2.4 GHz, 5 GHz and 6 GHz) Air Marshal WIDS/WIPS, spectrum analysis and location analytics radio
  • Spatial Streams per Radio : 6 GHz = 4 streams (4x4 MU-MIMO), 5 GHz = 4 streams (4x4 MU-MIMO), 2.4 GHz = 4 streams (4x4 MU-MIMO)
  • Maximum Data Rate : 7.78 Gbps (Aggregate, Tri-band)
  • Bluetooth / IoT Radios : 1x 2.4 GHz Bluetooth Low Energy (BLE) with Beacon and scanning support
  • PoE Standard : Powered via 802.3bt PoE (42.5 to 57V) - PoE injector (MA-INJ-6) sold separately.
  • DC Power Input : 54V DC input - DC adapter (MA-PWR-50WAC)
  • Uplink Ports : 2x 100M/1000M/2.5G/5G Multigigabit Ethernet PoE++ RJ-45
  • Other Ports : 1x USB 2.0 Type-A (9.5W power budget)
  • Antenna Type : Integrated omni-directional antennas, 4.5 dBi at 2.4 GHz, 5.5 dBi at 5 GHz, 5.5 dBi at 6 GHz
  • Antenna Ports : No external antenna ports — integrated omni-directional antennas only

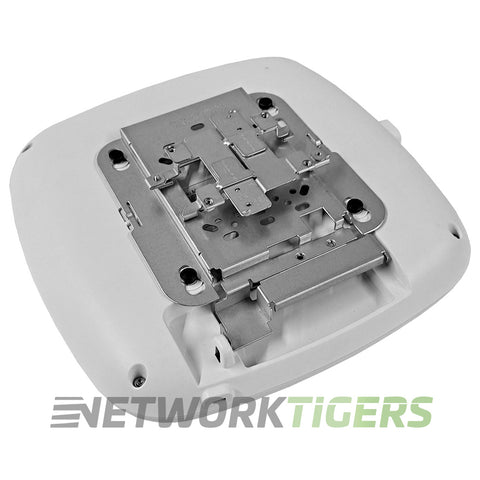

  • Mounting Options : Desktop, Ceiling, Wall Mount (AIR-AP-BRACKET-2). Compatible with AIR-AP-BRACKET-1 and AIR-AP-BRACKET-2. Ceiling tile rail support for 9/16, 15/16, or 1.5 in. flush or recessed rails.
  • Mounts Included : Yes - All standard mounting hardware included (AIR-AP-BRACKET-2)
  • Model Number : MR57-HW
  • Part Number : MR57-HW
  • Condition : New


Included

  • One (1) NEW Cisco Meraki MR57-HW Wi-Fi 6E 802.11ax Internal Ant Unclaimed WAP w/ Mount Used as described above
