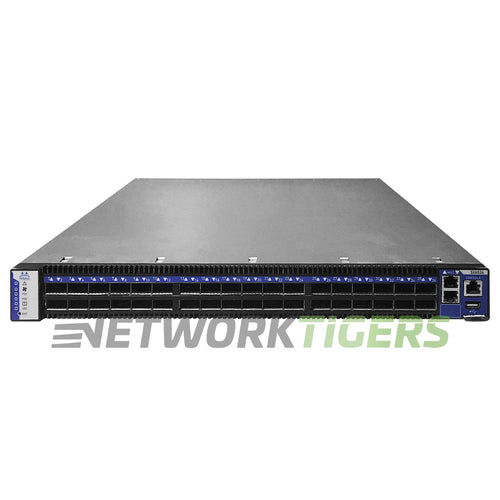

The NVIDIA Mellanox MSX6036F-2SFS is a managed 56Gb/s FDR InfiniBand switch with 36 QSFP ports in 1U, built on the SwitchX-2 chip. It runs its own subnet manager for fabrics of up to 648 nodes, so it can run an FDR cluster without a separate management server.

Choose the SX6036 when you need a managed FDR switch for an HPC cluster, lab or storage network, or a drop-in replacement in an existing FDR fabric. It connects to ConnectX-3 FDR adapters and also works with older QDR 40Gb/s equipment. This version has two power supplies for redundancy, standard depth, and back-to-front (P2C) airflow. For a lower-cost switch in a fabric that already has a subnet manager, see the externally managed SX6025.

nVidia Mellanox MSX6036F-2SFS: SwitchX-2 based 36-port QSFP FDR 56Gb/s, 1U, managed, 2 power supplies (AC), standard depth, P2C airflow (back-to-front).
