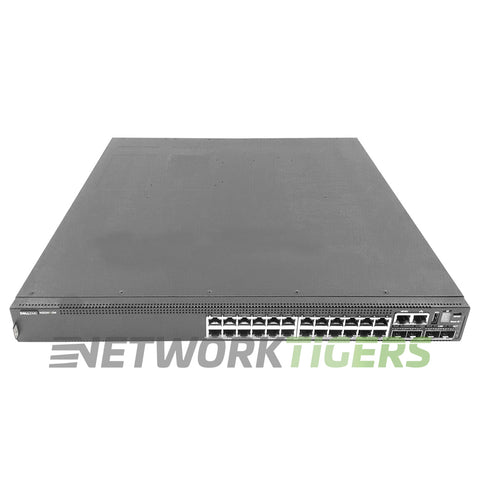

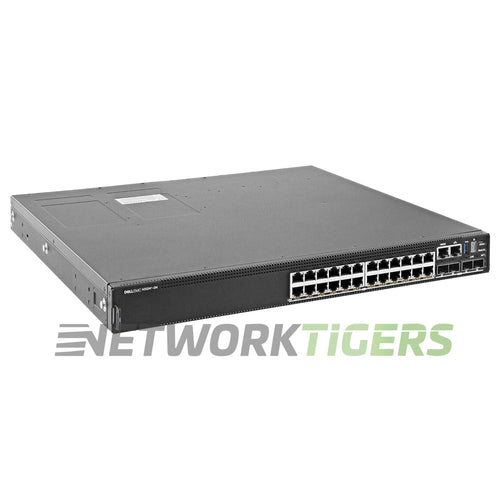

Dell N3224P-ON 24x 1GB PoE RJ-45 4x 10GB SFP+ 2x 100GB QSFP28 F-B Air Switch

Dell N3224P-ON 24x 1GB PoE RJ-45 4x 10GB SFP+ 2x 100GB QSFP28 F-B Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-8623

Overview

The Dell N3224P-ON switch is a high-performance networking solution suitable for professional environments. Its 24 PoE RJ-45 ports and 4 SFP+ slots offer excellent connectivity options, allowing you to power devices over Ethernet while utilizing high-speed fiber connections.

Featuring a switching capacity of 528 Gbps and a forwarding rate of 733 Mpps, this switch delivers reliable performance even in demanding situations. Its MAC address table size can accommodate up to 32,000 entries, ensuring efficient handling of network traffic.

The Dell N3224P-ON boasts easy installation and management features such as intuitive GUI interfaces. Along with support on Air Switch Technology that aids better internal cooling by channeling more air via switches, resulting in a reduction in device heat-ups, improving life span & efficiency

Dell N3224P-ON: IO/PS Airflow, with OS6: 24x RJ45 10/100/1000Mb 802.3at (up to 30W) PoE autosensing ports, 4x 10G SFP+ ports, 2X 100G QSFP28 ports, 1x 1050W AC PSU included.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE RJ-45
  • Uplink Ports : 4x 10 Gigabit Ethernet SFP+, 2x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x USB, 1x Out of Band Management RJ-45, 1x MicroUSB (Type B) Console, RJ-45 Console with RS232 signaling
  • Product Family : EMC PowerSwitch N3200-ON Series
  • Fan Modules AirFlow Direction : 3x Fan Modules Included - Front-to-Back Airflow (Normal)
  • Power Supplies Included : 1x 1050W AC
  • Switching Capacity : 528 Gbps
  • Forwarding Rate : 733 Mpps
  • MAC Address Table Size : 32,000
  • Rack Mounts : Not Included - Ready Rails ordered separately.
  • Model Number : N3224P-ON
  • Part Number : N3224P-ON
  • Condition : Seller refurbished

Datasheet

More information on this Dell N3224P-ON.

Included

  • One (1) Seller refurbished Dell N3224P-ON 24x 1GB PoE RJ-45 4x 10GB SFP+ 2x 100GB QSFP28 F-B Air Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Three (3) Fan Modules Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
