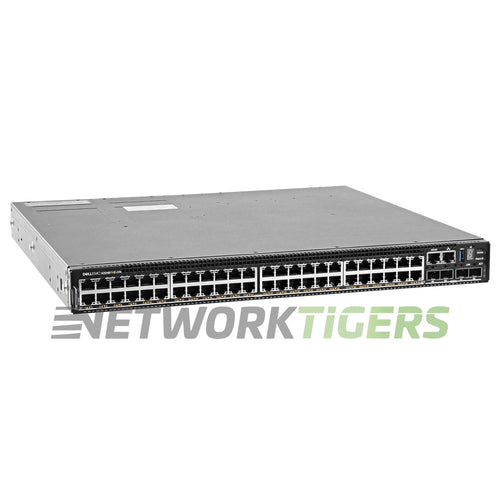

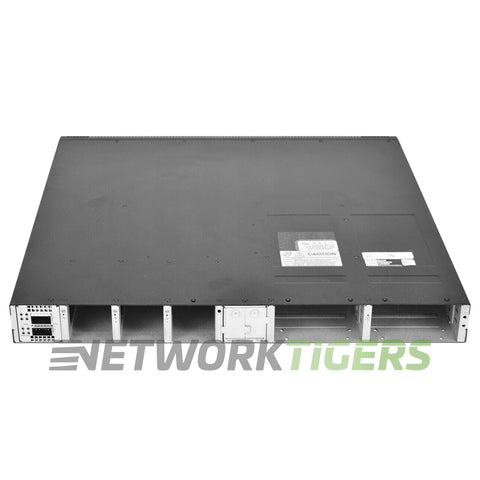

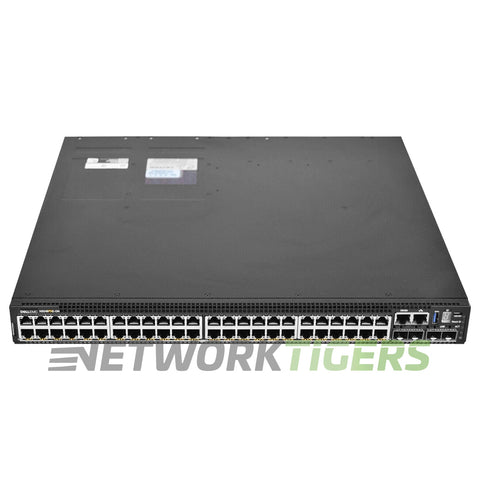

Dell N3248PXE-ON 48x 10GB PoE Copper 4x SFP28 2x QSFP28 F-B Air OS6 Switch

Dell N3248PXE-ON 48x 10GB PoE Copper 4x SFP28 2x QSFP28 F-B Air OS6 Switch

$ 7,804.99
18 in stock
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-9479

Overview

The Dell N3248PXE-ON switch is a powerful networking solution for high-performance environments. With 48x 10GB PoE Copper ports, it provides ample connectivity options for network devices.

Featuring advanced technology like the support of IEEE standard 802.3bt (up to 90W), this switch can deliver power over Ethernet to compatible devices with exceptional efficiency and reliability.

With a switching capacity of up to 1560 Gbps and a forwarding rate of up to 2167 Mpps, data transfer within your network will be fast and seamless. This makes it ideal for demanding applications such as video streaming or large file transfers.

Equipped with four SFP28 slots and two QSFP28 slots, you have additional flexibility in connecting fiber optic cables or stacking multiple switches together quickly.

Dell N3248PXE-ON: IO/PS Airflow, with OS6: 48x RJ45 10M/100M/1G/2.5G/5G/10G 802.3bt (up to 90W) PoE auto-sensing ports; 4x 25G SFP28 ports, 2X 100G QSFP28 ports, 1x 1600W AC PSU included.


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet PoE RJ-45 (10M/100M/1G/2.5G/5G/10G) - 802.3bt (up to 90W)
  • Uplink Ports : 4x 25 Gigabit Ethernet SFP28, 2x 100 Gigabit Ethernet QSFP28 (On Rear of Switch)
  • Management Ports : 1x USB, 1x Micro USB, 1x RJ-45 Console with RS232 signalling
  • Packet Buffer Memory : 8MB
  • Firmware Version : OS6
  • Fan Modules AirFlow Direction : 3x Fan Modules Included (4x Total Slots)
  • Power Supplies Included : 2x PSU Slots - 1x 1600W AC PSU (Front-to-Back Airflow - I/O to PSU) Included (Manufacturer Part YW4FN | Dell Part 282-BBBE)
  • PoE Budget : 90W - 802.3bt (up to 90W)
  • Switching Capacity : 1560Gbps
  • Forwarding Rate : 2167Mpps
  • MAC Address Table Size : 32K
  • Rack Mounts : Not Included - Ready Rails ordered separately.
  • Model Number : N3248PXE-ON
  • Part Number : N3248PXE-ON
  • Condition : Seller refurbished


Included

  • One (1) Seller refurbished Dell N3248PXE-ON 48x 10GB PoE Copper 4x SFP28 2x QSFP28 F-B Air OS6 Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
