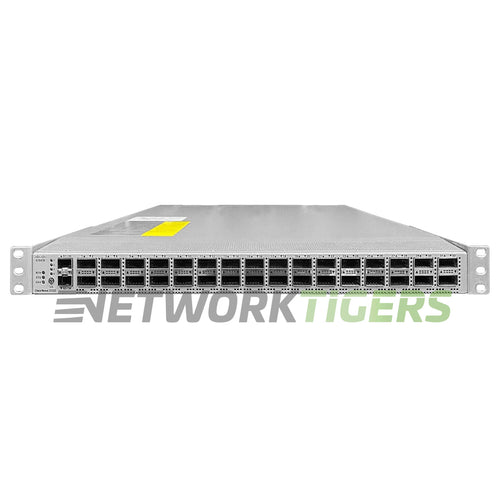

Cisco N3K-C3232C 32x 100GB QSFP28 2x 10GB SFP+ Front-to-Back Airflow Switch

Cisco N3K-C3232C 32x 100GB QSFP28 2x 10GB SFP+ Front-to-Back Airflow Switch

$ 735.99
$ 705.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.   Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-7021
UPC: 889728036146

Overview

The Cisco N3K-C3232C is a powerful switch for high-performance data center networks. Equipped with 32x 100GB QSFP28 ports and 2x 10GB SFP+ ports, this switch offers fast and reliable connectivity options.

With a switching capacity of up to 6.4 Tbps, the N3K-C3232C can handle large network traffic without experiencing bottlenecks. Its forwarding rate of 3.3 Bpps ensures smooth packet transmission even during peak usage.

This Cisco switch features a MAC address table size of 40,000, enabling efficient routing and delivery of packets within the network. Its low latency capability (450ns) minimizes delays in data transfer.

Cisco N3K-C3232C 32x 100GB QSFP28 2x 10GB SFP+ Front-to-Back Airflow Switch


Specifications

  • Network Ports : 32x 100 Gigabit Ethernet QSFP28 (10, 25, 40, 50, and 100 Gbps) - up to a maximum of 128 x 25-Gbps ports
  • Uplink Ports : 2x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x 1 Gigabit Management RJ45, 1x RS-232 Serial Console, 1x USB (TypeA)
  • Product Family : Nexus 3200 Series
  • System Memory : 8GB DRAM. 64 GB Flash
  • AirFlow Direction : Front-to-Back Airflow (Port Side Intake/ Reversed Airflow)
  • Fan Modules : 4x NXA-FAN-30CFM-B (3+1) Fan Modules included
  • Power Supplies : 2x NXA-PAC-650W-PI PSU's Included
  • Switching Capacity : 6.4 Tbps
  • Forwarding Rate : 3.3 Bpps
  • MAC Address Table Size : 40,000
  • Maximum number of Longest-Prefix-Match (LPM) routes : 128,000
  • Maximum number of IP host entries : 72,000
  • Maximum number of Layer 3 multicast entries : 64,000
  • VLANs Supported : 4096
  • Packet Buffer : 16MB
  • Latency : 450ns
  • CPU : 4 Core
  • Model Number : N3K-C3232C
  • Part Number : N3K-C3232C, N3K-C3232C=, N3K-C3232C-WS
  • Condition : Seller refurbished

Datasheet

More information on this Cisco N3K-C3232C.

Included

  • One (1) Seller Refurbished Cisco N3K-C3232C 32x 100GB QSFP28 2x 10GB SFP+ Front-to-Back Airflow Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
