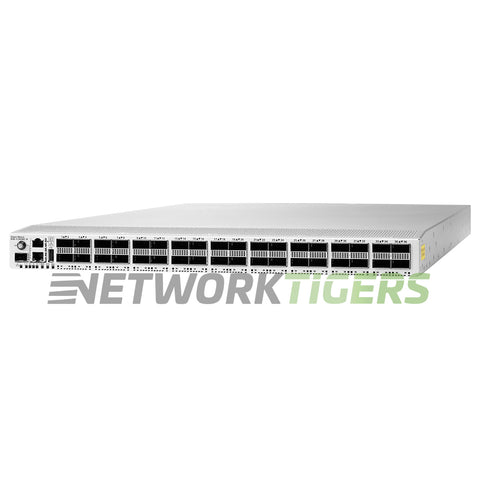

The Cisco N3K-C3636C-R switch offers 36 ports of 100GB QSFP28 and a front-to-back airflow design. This switch has a switching capacity of 7.2 Tbps and a forwarding rate of 3.34 Bpps, making it suitable for high-performance networking environments.
With a MAC address table size of up to 750,000 entries, this switch provides ample space for device connectivity and communication within the network infrastructure.
Designed to meet the demands of modern data centers and large-scale networks, the Cisco N3K-C3636C-R is equipped with advanced features to support efficient data transfer and reliable network performance. Whether used in enterprise settings or service provider environments, this switch delivers robust capabilities that contribute to enhanced overall network efficiency and reliability.
Cisco Nexus N3K-C3636C-R: Cisco Nexus 3636C-R switch, 36p QSFP28 MACSEC - Front-to-Back Airflow (Port Side Intake/ Reversed Airflow).
- Network Ports : 36x 100 Gigabit Ethernet QSFP28
- Management Ports : 1x RS-232 RJ45, 1x Gigabit Management RJ45, 1x USB
- Switch Version : NX-OS
- System Memory : 32GB DRAM, 128GB Flash
- AirFlow Direction : Front-to-Back Airflow (Port Side Intake/ Reversed Airflow)
- Fan Modules : 3x NXA-FAN-65CFM-PI Fans Included
- Power Supplies : 2x NXA-PAC-2KW-PI Power Supplies Included
- Switching Capacity : 7.2 Tbps
- Forwarding Rate : 3.34 Bpps
- MAC Address Table Size : 750,000
- Max IPv4 LPM Routes : 128,000
- Maximum number of Layer 3 multicast entries : 64,000
- Maximum number of IP host entries : 750,000
- MACSec Capability : Yes
- VLANs Supported : 4096
- Packet Buffer : 16GB (Dynamic Buffer Allocation)
- CPU : 8-core CPU
- Model Number : N3K-C3636C-R
- Part Number : N3K-C3636C-R, N3K-C3636C-R=, N3K-C3636C-R-WS
- Condition : New
- One (1) NEW Cisco N3K-C3636C-R 36x 100GB QSFP28 Front-to-Back Airflow Switch as described above
