Experience blazing-fast and reliable WiFi with the HPE Aruba Q9H58A AP-514 (US) Dual Radio 802.11ax WiFi 6 MU-MIMO OFDMA WAP! Upgrade your network with the latest technology for seamless connectivity, improved speed, and enhanced performance.

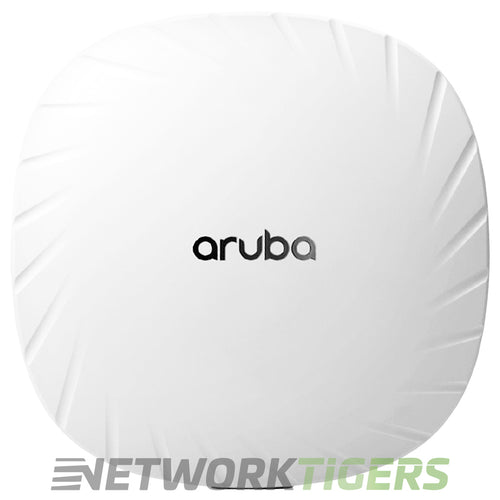

The HPE Aruba Q9H58A AP-514 (US) is a dual radio 802.11ax WiFi 6 MU-MIMO OFDMA WAP with antenna options available for capacity optimization. It supports up to 16 BSSIDs per radio and 256 wireless clients per Wi-Fi radio, ensuring reliable connectivity in the 2.4 GHz and 5 GHz frequency bands.
Aruba Q9H58A: Aruba AP-514 (US) Dual Radio 4x4:4 + 2x2:2 802.11ax External Antennas Unified Campus AP.
- Wi-Fi Standard : 802.11ax (Wi-Fi 6), MU-MIMO, OFDMA
- Managed By : Aruba Central / Aruba Mobility Controller
- Suggested Use : Indoor, campus, high density environments
- Region : United States
- Radios : Dual Radio - 5GHz 802.11ax 4x4 MIMO & 2.4GHz 802.11ax 2x2 MIMO, plus Bluetooth 5 and Zigbee (802.15.4) radio
- Spatial Streams per Radio : 5GHz 4SS / 2.4GHz 2SS
- Maximum Data Rate : 2.69 Gbps aggregate (574 Mbps 2.4GHz + 4.8 Gbps 5GHz max)
- Bluetooth / IoT Radios : Bluetooth 5 and Zigbee (802.15.4)
- PoE Standard : 802.3af (class 3) / 802.3at (class 4) / 802.3bt (class 5)
- DC Power Input : 12V DC nominal ±5% (2.1/5.5mm center-positive jack) - power sources are sold separately
- Uplink Ports : 1x 100/1000/2500BASE-T SmartRate RJ-45 (E0 PoE) and 1x 10/100/1000BASE-T RJ-45 (E1)
- Other Ports : 1x USB 2.0 Type-A
- Antenna Type : External (RP-SMA connectors)
- Antenna Ports : 4x dual-band RP-SMA female connectors
- Antenna Options : Sold Separately - JW009A (ANT-1W Hi-gain Omni), JW001A (ANT-13B Downtilt Omni), JW004A (ANT-19 Omni Indoor/Outdoor), JW011A (ANT-20W Compact Omni), JW017A (ANT-40 MIMO Omni), JW018A (ANT-45 Sector 90x90), JW019A (ANT-48 Sector 60x60)
- Mounting Options : Ordered Separately - R3J15A (Type A, flat rail 9/16), R3J16A (Type B, flat rail 15/16), R3J17A (Type C, profile rail 9/16), R3J18A (Type D, solid surface), R3J19A (Type E, wall-box)
- Mounts Included : A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the (sold separately) mount kits
- Model Number : Q9H58A
- Part Number : Q9H58A, AP-514, AP-514-US, APIN0514
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-514 Q9H58A US Wi-Fi 6 802.11ax External Antenna Wireless AP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
- Mount Bracket Not Included
- Antennas Not Included
