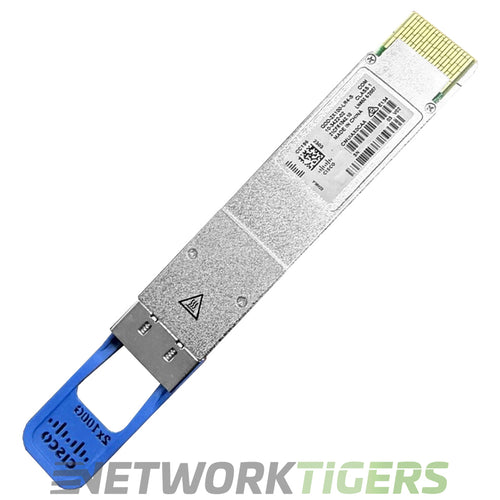

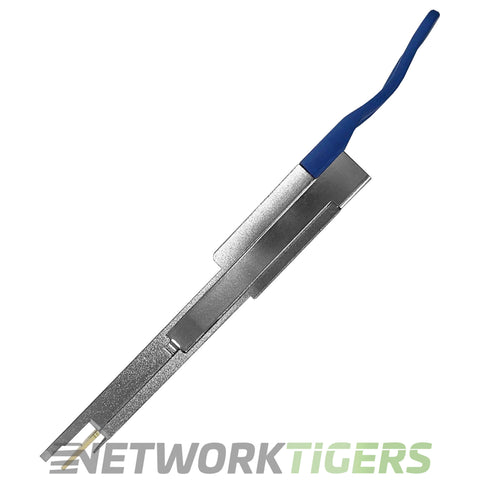

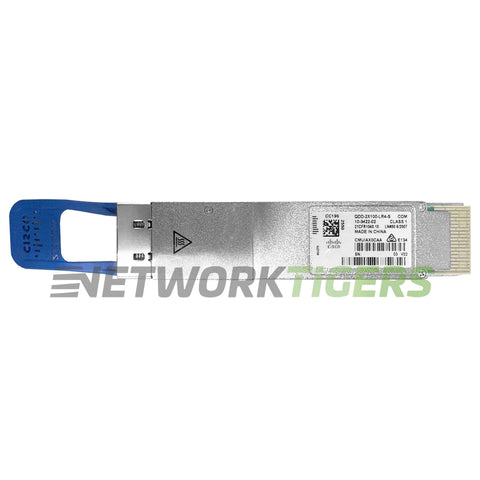

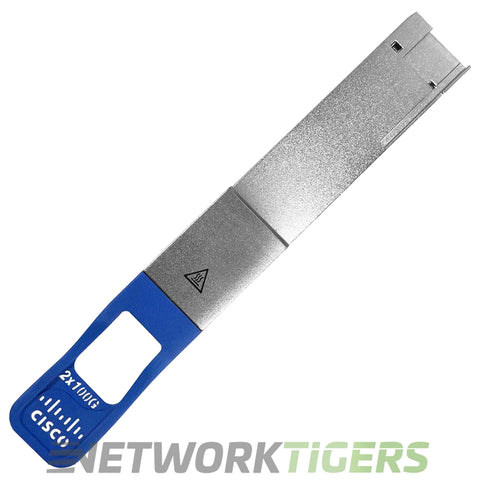

The Cisco QDD-2X100-LR4-S is a QSFP28 transceiver supporting 200 Gbps transmission over dual duplex CS connectors. Manufactured by Cisco, it operates across wavelengths from 1295 nm to 1309 nm and uses single-mode fiber (SMF) for distances up to 10 km.
This module supports two independent bidirectional channels of 100 Gbps each via PAM4 modulation and complies with the IEEE P802.3bs standard for long-range optical communication. It connects through an MPO-based Dual Duplex CS interface suited for high-density data center applications requiring extended reach links using SMF cabling. The hot-swappable design allows installation into compatible QSFP-DD ports without powering down devices or affecting traffic on adjacent ports.
Cisco QDD-2X100-LR4-S: 2x 100G QSFP-DD Transceiver, 2x 100GBASE-LR4, Dual Duplex CS, 10km SMF
- Form Factor : QSFP28 Transceiver
- Speed : 200 Gbps
- Wavelength : 1295nm~1309nm
- Cable Type : SMF
- Connection Type : Dual Duplex
- Cable Distance : 10km
- Model Number : QDD-2X100-LR4-S
- Part Number : QDD-2X100-LR4-S
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco QDD-2X100-LR4-S 200GB BASE-LR4 10km Dual Duplex CS SMF QSFP28 Transceiver as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer\'s website or the web. Software or firmware updates may be available through the manufacturer\'s website
