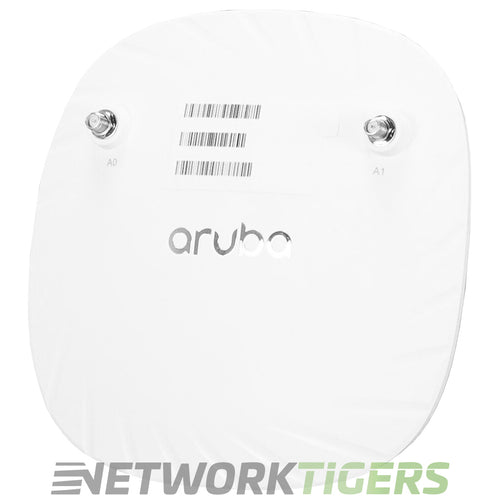

Experience the next-level of wireless connectivity with the HPE Aruba R2H23A AP-504 (US) Dual Radio 802.11ax WiFi 6 access point. This cutting-edge device features 2x2:2 MIMO technology, ensuring blazing-fast and reliable wireless connections.
With antenna options for enhanced coverage, this WAP is designed to take your network performance to new heights. Stay ahead of the curve with the future-proof WiFi 6 technology and unleash the full potential of your network infrastructure with HPE Aruba R2H23A AP-504.
Aruba R2H23A: Aruba AP-504 (US) Dual Radio 2x2:2 802.11ax External Antennas Unified Campus AP.
- Wi-Fi Standard : 802.11ax (Wi-Fi 6)
- Managed By : Aruba Central, Mobility Controller, or Instant (standalone)
- Suggested Use : Cost-effective medium-density indoor environments (schools, midsize offices, retailers)
- Region : US
- Radios : Dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO
- Spatial Streams per Radio : 2 (2SS) on both bands
- Maximum Data Rate : 1.49 Gbps real-world aggregate (HE80/HE20), up to 1.2 Gbps (5GHz) and 574 Mbps (2.4GHz) per radio max
- Bluetooth / IoT Radios : Bluetooth 5 (BLE 5.0) and Zigbee (802.15.4), integrated omnidirectional antenna, peak gain 3.3 dBi
- PoE Standard : 802.3af/at (class 3 or 4) - PoE Injector sold separately
- DC Power Input : 12Vdc (nominal, +/- 5%), 2.1mm/5.5mm center-positive circular plug - DC Adapter sold separately
- Uplink Ports : 1x 1 Gigabit Ethernet RJ45
- Other Ports : 1x Reset Button, 1x USB
- Antenna Type : External, RP-SMA
- Antenna Ports : Two (female) RP-SMA connectors (A0 and A1, radio chains 0 and 1)
- Antenna Options : Sold Separately - JW009A (6dBi Omni), JW001A (4dBi Downtilt), JW004A (6dBi Indoor/Outdoor), JW011A (2dBi Compact Omni), JW003A (4.7dBi 3-Elmt MIMO)
- Mounting Options : Sold Separately - R3J15A (Type A, flat rail 9/16), R3J16A (Type B, flat rail 15/16), R3J17A (Type C, profile rail 9/16), R3J18A (Type D, solid surface), R3J19A (Type E, wall-box)
- Mounts Included : A mounting bracket has been pre-installed on the back of the AP. This bracket is used to secure the AP to any of the mount kits (sold separately)
- Model Number : R2H23A
- Part Number : R2H23A, AP-504, AP-504-US, APIN0504
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba AP-504 R2H23A US Wi-Fi 6 802.11ax External Ant Campus Unified WAP as described above
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Adapter Not Included
- Power Injector Not Included
