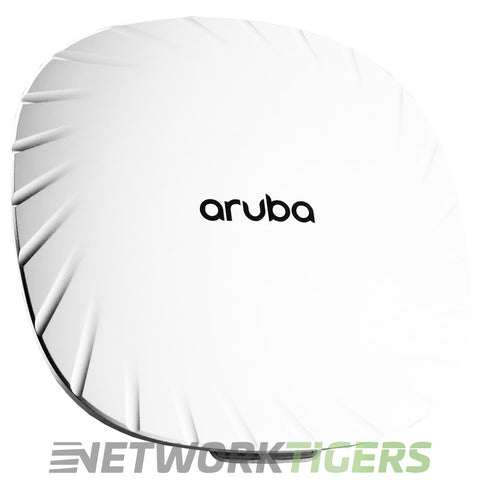

The NEW HPE Aruba R2H39A AP-505 US is a TAA-compliant Wi-Fi 6 access point with 2x2:2 MIMO technology. It operates on both the 2.4 GHz and 5 GHz frequencies, supporting IEEE standards such as 802.11b/g/n/ac/ax and Bluetooth 5.0 connectivity.
With a maximum data rate of up to 1.2 Gbps, this omnidirectional antenna allows efficient wireless communication in various environments within the US regulatory domain.
This product caters to users seeking reliable high-speed internet connections across multiple devices without compromising performance or reliability levels commonly found in business networking setups.
NEW HPE Aruba R2H39A AP-505 US 2x2:2 802.11ax Wi-Fi 6 2x2:2 MIMO TAA WAP
- Wi-Fi Standard : Wi-Fi 6 (802.11ax)
- Managed By : Unified AP, meaning it supports all three management modes - Aruba Central, Controller-Managed Mode, Aruba Instant Mode
- Suggested Use : Cost-effective Wi-Fi 6 coverage in indoor environments such as mid-sized offices, schools, and retail spaces
- Region : US TAA
- Radios : 1x 5 GHz Client Access - 802.11ax (Wi-Fi 6), 2x2 MU-MIMO with 2 spatial streams, 1x 2.4 GHz Client Access - 802.11ax (Wi-Fi 6), 2x2 MU-MIMO with 2 spatial streams
- Spatial Streams per Radio : 2
- Maximum Data Rate : Maximum data rate (2.4 GHz) - 574 Mbps | Maximum data rate (5 GHz) - 1.2 Gbps | Aggregate throughput - 1.774 Gbps
- Bluetooth / IoT Radios : 1x Integrated IoT Radio - Combined Bluetooth 5 and 802.15.4/Zigbee radio for IoT deployments including location-based services, asset tracking, and IoT sensor networks, eliminating the need for a separate IoT overlay infrastructure.
- PoE Standard : POE-PD - 48Vdc (nominal) 802.3af/at POE (class 3 or 4) - PoE Injector sold separately
- DC Power Input : 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length - Power sources sold separately
- Uplink Ports : 1x 1 Gigabit Ethernet RJ45
- Other Ports : 1x Reset Button, 1x USB
- Antenna Type : 2x Internal dual-band downtilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.9dBi in 2.4GHz and 5.7dBi in 5GHz
- Mounting Options : The AP-505 ships with a mount bracket pre-installed on the back of the unit.
- Mounts Included : Additional mount kits are sold separately
- Model Number : R2H39A
- Part Number : R2H39A, AP-505, AP-505-TAA, APIN0505
- Condition : New
- One (1) NEW HPE Aruba AP-505 R2H39A US TAA Wi-Fi 6 802.11ax Internal Ant Unified WAP as described above
