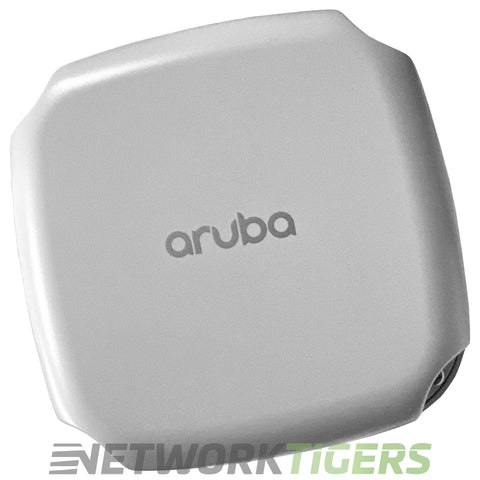

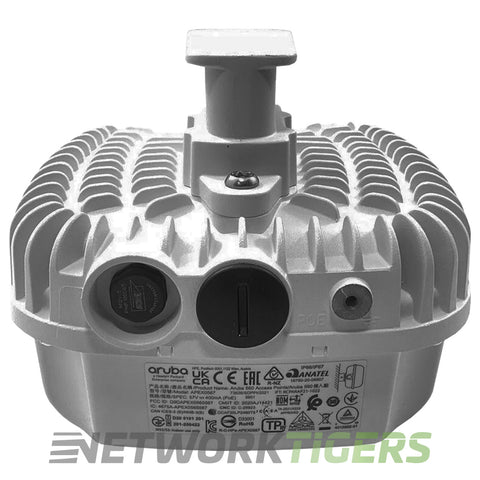

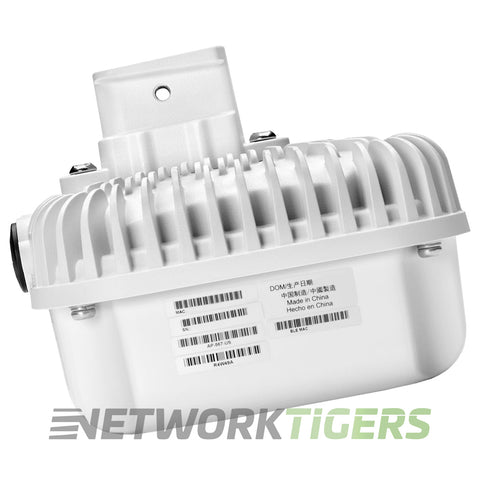

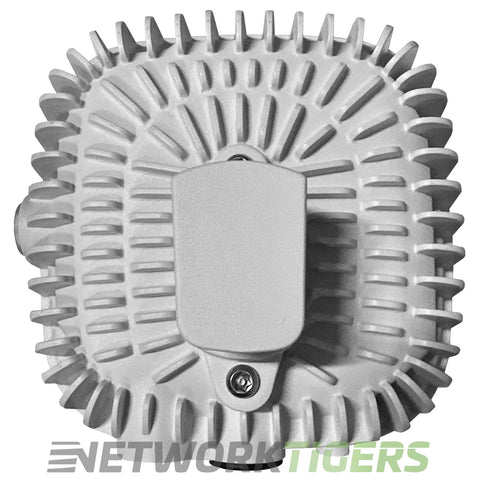

HPE Aruba R4W49A AP-567 (US) by Hewlett Packard Enterprise is an outdoor wireless access point with dual 2 x 2 : 2 Wi‑Fi radios. It supports IEEE 802.11a / b / g / n / ac Wave 2 / ax standards and provides a maximum wireless data rate of up to 1.73 Gbit / s across 2.4 GHz and 5 GHz bands.
The unit supports up to 256 wireless clients per Wi‑Fi radio and includes ZigBee and Bluetooth 5.0 radios for IoT connectivity. It operates under the US regulatory domain and supports external antenna options. The design targets outdoor wireless coverage with compatibility across legacy and Wi‑Fi 6 client devices.
HPE Aruba Networking AP-567 (US) 802.11ax Dual 2x2:2 Radio Integrated Directional Antenna Outdoor AP.
- Wi-Fi Standard : Wi-Fi 6 - IEEE 802.11ax
- Managed By : Cloud platform, or on-premises via a mobility controller/gateway, standalone mode also supported, zero-touch provisioning available
- Suggested Use : Outdoor and warehouse environments, weatherproof and temperature-hardened, entry-level Wi-Fi 6 for harsh conditions, this AP-567 model uses directional antennas, ideal where the goal is to focus coverage in one direction rather than 360-degree spread
- Region : US
- Radios : 2x, one 2.4GHz and one 5GHz, software-configurable dual radio
- Spatial Streams per Radio : 2x streams on both 2.4GHz and 5GHz using 2x2 by 2, for 4x total combined
- Maximum Data Rate : Up to 574 Mbps on 2.4GHz and 1.2 Gbps on 5GHz, up to 1.49 Gbps aggregate
- Bluetooth / IoT Radios : Integrated Bluetooth 5 and 802.15.4 radio for Zigbee support, enabling IoT location services, asset tracking, and sensor deployments
- PoE Standard : 802.3at (PoE+)
- DC Power Input : N/A - PoE Only
- Uplink Ports : 1x 10/100/1000 Base-T Ethernet RJ-45, PoE-PD input rated 48Vdc nominal, 802.3at/bt Class 3 or higher
- Antenna Type : Integrated 90°H by 90°V directional antennas, 5GHz at 6.8dBi peak gain, 2.4GHz at 7.1dBi peak gain, BLE/802.15.4 antenna at 3.0dBi
- Mounting Options : Optional Mounting Kits - None Included - AP-OUT-MNT-V1A, AP-270-MNT-V2, AP-270-MNT-H1, AP-270-MNT-H2, AP-270-MNT-H3
- Mounts Included : Not included, all mounting kits are optional accessories sold separately
- Model Number : R4W49A
- Part Number : R4W49A, AP-567, AP-567-US, AP-567 (US), AP-567 US, APEX0567
- Condition : New
- One (1) NEW HPE Aruba AP-567 R4W49A US Wi-Fi 6 802.11ax Internal Dir Antenna Outdoor WAP as described above
