Dell S5224F-ON-RA 24x 25GB SFP28 4x 100GB QSFP28 B-F Air No OS10 Switch

Dell S5224F-ON-RA 24x 25GB SFP28 4x 100GB QSFP28 B-F Air No OS10 Switch

$ 6,577.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-9767
UPC: 011110666352

Overview

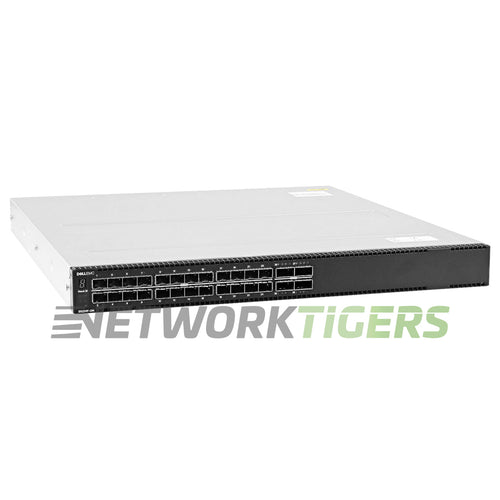

The Dell S5224F-ON-RA is a high-performance switch for data centers and enterprise networks. It features 24x 25GB SFP28 ports and 4x 100GB QSFP28 B-F ports, providing fast connectivity options. This switch does not come with an operating system (OS10) installed.

With a switching capacity of up to 1.08Tbps and a forwarding rate of up to 1488 Mpps, this switch can efficiently handle heavy network traffic loads. Its MAC address table size is capable of storing up to160,000 addresses.

One notable feature of the Dell S5224F-ON-RA is its low latency performance, ensuring smooth communication between devices on the network. With only881 nanoseconds in latency, it offers minimal delay during data transmission.

Dell S5224F-ON: Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed. OS10 is NOT included.


Specifications

  • Network Ports : 24x 25 Gigabit Ethernet SFP28
  • Uplink Ports : 4x 100 Gigabit Ethernet QSFP28
  • Model Number : S5224F-ON (RA = Reversed Airflow)
  • Firmware Version : OS10 is NOT included
  • Fan Modules AirFlow Direction : 4x Fan Modules Included - Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed)
  • Power Supplies Included : 2x Hot Swappable Dual Redundant Power Supplies Included - Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed)
  • Alternative Dell Part Numbers : S5224F-ON RA, S5224F-ON-RA
  • Switching Capacity : 1.08Tbps
  • Forwarding Rate : 1488Mpps
  • MAC Address Table Size : 160,000
  • Latency : 881
  • Rack Mounts : Included (1-RU)
  • Model Number : S5224F-ON-RA
  • Part Number : S5224F-ON-RA, S5224F-ON RA
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Dell S5224F-ON-RA 24x 25GB SFP28 4x 100GB QSFP28 B-F Air No OS10 Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
