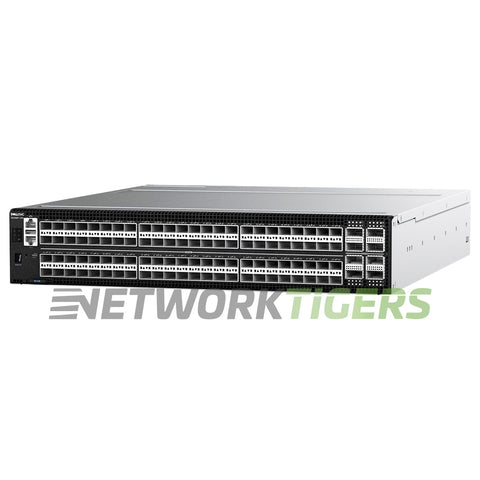

NEW Dell S5296F-ON EMC S 96x 25GB SFP28 8x 100GB QSFP28 F-B Air OS10 Switch
New

NEW Dell S5296F-ON EMC S 96x 25GB SFP28 8x 100GB QSFP28 F-B Air OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

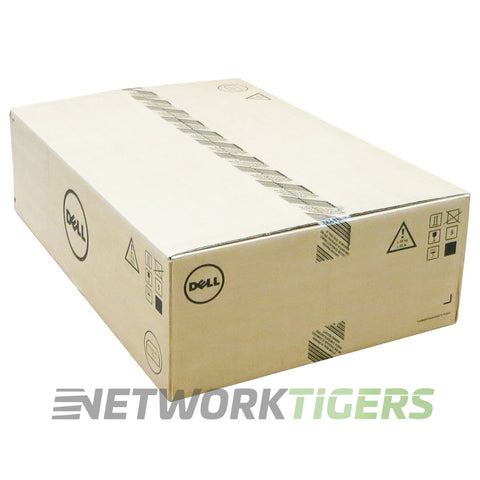

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1911

Overview

The Dell S5296F-ON EMC S 96x switch offers a high switching capacity of 3.2Tbps and a forwarding rate of 2.4Bpps, making it ideal for large-scale networking environments. With a MAC Address Table Size of up to 160000 entries, this switch can handle numerous connected devices without compromising performance.

Featuring low latency at just 850 nanoseconds, the Dell S5296F-ON ensures fast data transmission for real-time applications and smooth network operations. This switch is equipped with innovative Air OS10 software and provides reliable connectivity and management capabilities.

Dell S5296F-ON: 96x 25GbE SFP28 + 8x 100GbE QSFP28, 2x AC PSU, Fan modules. OS10 Included.


Specifications

  • Network Ports : 96x 25 Gigabit Ethernet SFP28
  • Uplink Ports : 8x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x Gigabit Ethernet Management, 1x RJ45 Management, 1x USB
  • Firmware Version : OS10 Included
  • Fan Modules AirFlow Direction : 4x Fan Modules Included - I/O Panel to PSU Airflow (Normal)
  • Power Supplies Included : 2x AC PSU's Included - I/O Panel to PSU Airflow (Normal)
  • Switching Capacity : 3.2Tbps
  • Forwarding Rate : 2.4Bpps
  • MAC Address Table Size : 160000 entries
  • Latency : 850 nanoseconds
  • Rack Mounts : Included (1-RU)
  • Model Number : S5296F-ON
  • Part Number : S5296F-ON
  • Condition : New


Included

  • One (1) NEW Dell S5296F-ON EMC S 96x 25GB SFP28 8x 100GB QSFP28 F-B Air OS10 Switch as described above
