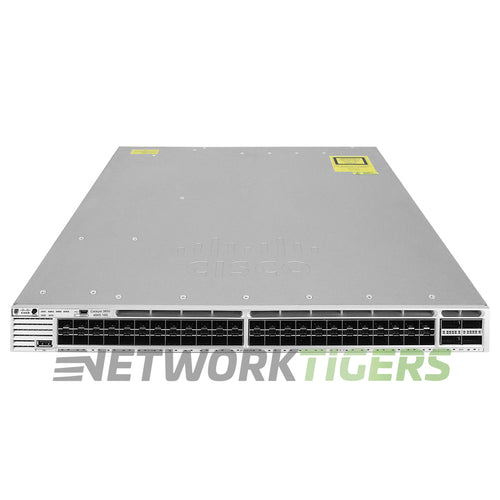

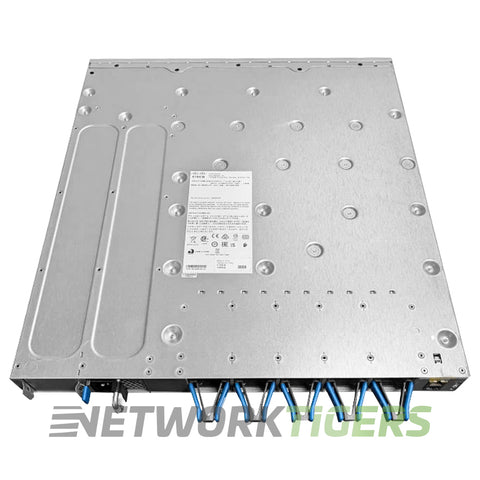

Cisco WS-C3850-48XS-F-E 48x 10GB SFP+ 4x 40GB QSFP+ BF Airflow Standalone Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-4656
UPC: 882658757914

Overview

The Cisco WS-C3850-48XS-F-E is a high-performance switch designed for data centers and large enterprise networks. This 1U rack-mountable switch features 48x 10GB SFP+ connectivity and 4x 40GB QSFP+ ports. The back-to-front airflow design ensures cooling by exporting air through the ports.

With a switching capacity of up to 1280 Gbps, this Cisco switch offers superior performance for handling intensive tasks like video streaming or big data transfers. It can handle a forwarding rate of up to 909 million packets per second (Mpps), ensuring fast and seamless network traffic flow.

This switch's MAC address table size can accommodate up to 32,000 entries, allowing efficient management and communication between connected devices. The Cisco WS-C3850-48XS-F-E provides robust capabilities suitable for demanding environments that require high-speed connections and reliable performance

Cisco Catalyst WS-C3850-48XS-F-E: Standalone, 48x SFP+ and 4x QSFP+ Ethernet ports, with 750WAC back-to-front power supply 1 RU.


Specifications

  • Network Ports : 48x 10 Gigabit Ethernet SFP+
  • Uplink Ports : 4x 1 Gigabit Ethernet QSFP+
  • Management Ports : 1x Console RJ45, 1x Gigabit Ethernet Management, 1x Mini-USB console (Type B), 1x USB (Type A)
  • Stacking Ports : StackWise and StackPower technologies are not supported on the 48-port SFP+ switch model.
  • Switch Version : IP Services Version
  • AirFlow Direction : Back to Front Airflow
  • Fan Module Options : 3x FAN-T3-F Fan Modules Included - Back to Front Airflow
  • Power Supplies Included : 2x PSU Slots - 1x PWR-C3-750WAC-F 750W AC Power Supply Included
  • Power Supply Options : PWR-C3-750WAC-F, PWR-C3-750WAC-R (F-B Air), PWR-C3-750WDC-R (DC), PWR-C3-750WDC-F (DC)
  • Switching Capacity : 1280 Gbps
  • Forwarding Rate : 909 Mpps
  • MAC Address Table Size : 32,000
  • Model Number : WS-C3850-48XS-F-E
  • Part Number : WS-C3850-48XS-F-E, WS-C3850-48XS-F-E=, WS-C3850-48XS-F-E-WS
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Cisco WS-C3850-48XS-F-E 48x 10GB SFP+ 4x 40GB QSFP+ BF Airflow Standalone Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Three (3) Fan Module Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
