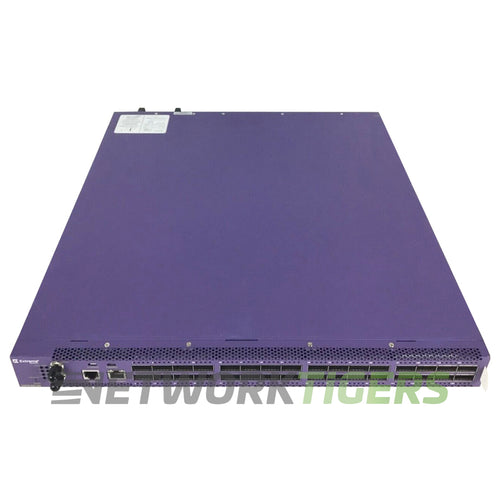

The Extreme 17810 X870-96x-8c is a 1RU ExtremeSwitching X870 Series data center switch built for high-density 10GbE server access with 100GbE uplinks. Its front panel carries 32 QSFP28 ports. Twenty-four of them run in 4x 10GbE breakout mode by default, giving 96 ports of 10 Gigabit Ethernet with breakout cables, and the optional 17830 Port Speed License unlocks full 25/40/50/100GbE on those ports in groups of six. The other eight QSFP28 ports are multi-speed and support 10, 25, 40, 50 or 100GbE, including 2x 50G and 4x 25G breakout.
Switching capacity is 6.4 Tbps non-blocking with a forwarding rate of 3.17 Bpps. The switch holds up to 136,000 MAC addresses, 192,000 IPv4 routes and 4,092 VLANs, backed by a 16MB packet buffer, a 2.4GHz quad-core CPU, 8GB of DDR3 ECC memory and a 32GB SSD. It runs ExtremeXOS with the Advanced Edge license included, supporting Layer 2 and Layer 3 switching, IPv4 and IPv6 routing, VXLAN, data center bridging and SummitStack-V400 stacking of up to eight switches.
The base unit ships with empty power supply and fan bays. Pair it with 770W AC or 1100W DC power supplies and six fan modules, all with the same front-to-back or back-to-front airflow to suit your rack layout.
Extreme 17810 X870-96x-8c 96x 10GB (24x QSFP28) 8x 100GB QSFP28 Switch
- Network Ports : 24x QSFP28 Ports in 4x 10GbE Breakout Mode (96x 10 Gigabit) - Upgradable to 25/40/50/100GbE with 17830 Port Speed License (6 Ports per License, Max 4)
- Uplink Ports : 8x 100 Gigabit QSFP28 (10/25/40/50/100GbE, 2x 50G and 4x 25G Breakout Supported)
- Management Ports : 1x RJ45 10/100/1000 Out-of-Band Management, 1x RJ45 Serial Console, 1x Micro USB Type B Console, 1x Micro USB Type A Storage
- Stacking Ports : Stacks over 100GbE QSFP28 Ports
- Stacking Options : SummitStack-V400 - Up to 8 Switches
- Stacking Cable Options : 100G QSFP28 Passive Copper DAC - 10410 (0.5m), 10411 (1m), 10413 (3m), 10414 (5m)
- Module Slots : None - Fixed Configuration
- Switch Version : ExtremeXOS - Advanced Edge License Included
- AirFlow Direction : Front-to-Back or Back-to-Front (Set by Fan and PSU Modules, Must Match)
- Fan Module Options : 6x Unpopulated Fan Module Slots - Options are 17115 (F-B), 17116 (B-F)
- Power Supplies Included : 2x Unpopulated PSU Slots
- Power Supply Options : 10960 (770W AC PSU F-B), 10961 (770W AC PSU B-F), 10962 (1100W DC PSU F-B), 10963 (1100W DC PSU B-F)
- PoE Budget : None
- Switching Capacity : 6.4 Tbps
- Forwarding Rate : 3.17 Bpps
- MAC Address Table Size : 136,000
- DRAM and Flash : 8GB DDR3 ECC DRAM - 32GB SSD - 2.4GHz Quad-Core CPU - 16MB Packet Buffer
- Model Number : 17810
- Part Number : 17810
- Condition : Seller refurbished
- One (1) Seller Refurbished Extreme 17810 ExtremeSwitching X870 Series X870-96x-8c 96x 10 Gigabit (24x QSFP28 Breakout) 8x 100 Gigabit QSFP28 Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Power Supplies Not Included
- Power Cord Not Included
- Fan Modules Not Included
