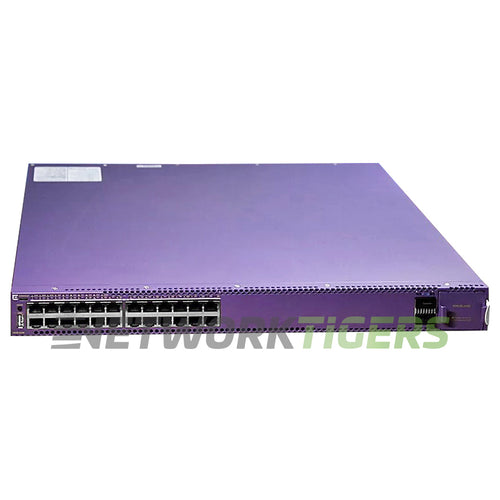

The Extreme 5520-24W switch offers 24x 1Gb PoE RJ45 ports and supports two high-speed 40Gb QSFP+ uplinks. Designed for scalability, it includes one VIM module slot to support expanded functionality.
With a switching capacity of up to 648 Gbps and forwarding rates reaching 482.1 million packets per second (mpps), this device handles high-volume data processing efficiently. Its MAC address table accommodates either up to 114,688 or is reduced at higher densities, with configurations supporting capacities like IPv4/IPv6 flexibility options, ensuring routing-intensive optimized provision allocation changes affect setup
Extreme 5520-24W: 5520 Universal Switch with 24 x 10/100/1000BASE-T full/half duplex 802.3bt 90W PoE MACsec-capable ports, includes 2 x Stacking/QSFP28 ports, three fan modules, 1x VIM slot, two unpopulated modular PSU slots, Base software.
- Network Ports : 24x 1 Gigabit Ethernet PoE RJ45
- Uplink Ports : 2x 40 Gigabit Ethernet QSFP+ (Stacking)
- Management Ports : 1x Serial Console (RJ45), 1x 1GB Out of Band Management, 2x USB A for management or external USB flash, 1x USB Micro-B Console
- Stacking Ports : See Uplink Ports*
- Module Slots : 1x VIM Slot
- Fan Module Options : 3x 17115 Fan Modules Included
- Power Supplies Included : 2 x PSU Power Supply, Power supplies sold separately. Options are - 10951, 715W AC PSU FB, 10941, 1100W AC PSU FB
- Switching Capacity : 648 Gbps
- Forwarding Rate : 482.1 mpps
- MAC Address Table Size : 114,688/65,536
- Model Number : 5520-24W
- Part Number : 5520-24W
- Condition : Seller refurbished
- One (1) Seller refurbished Extreme 5520-24W 5520 Series 24x 1GB PoE RJ45 2x 40GB QSFP+ Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Power Supplies Not Included - sold separately
