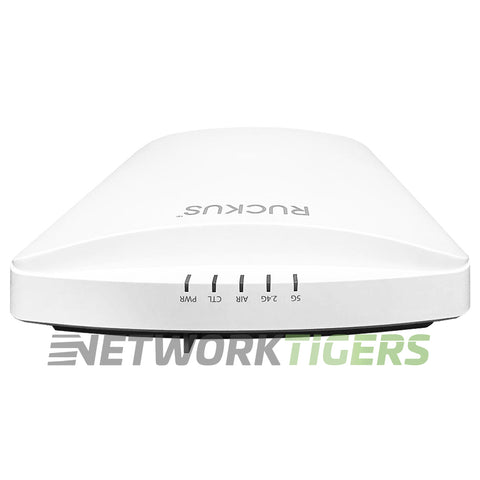

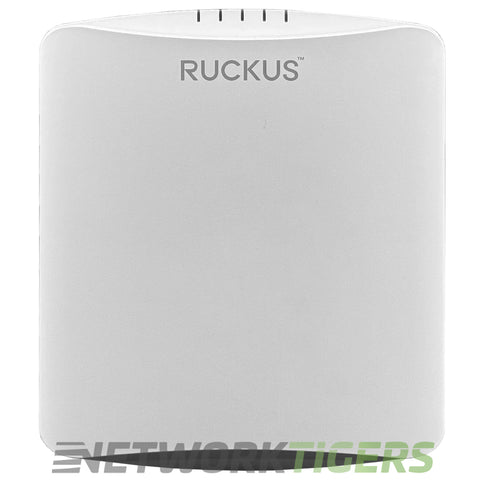

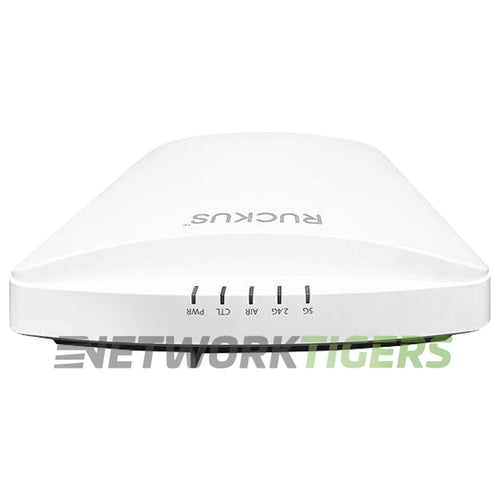

The Ruckus 901-R750-US00 Indoor Wi-Fi 6 WAP is designed to provide high-speed connectivity on both 2.4 GHz and 5GHz frequencies, allowing for a maximum data rate of up to 2400 Mbps.
With its capacity to manage up to 1024 client connections, this device is ideal for large-scale deployments in various environments. The MU-MIMO and OFDMA features simultaneously enable efficient communication between multiple devices, ensuring reliable performance even in busy networks.
Ruckus 901-R750-US00: R750 dual-band (5GHz and 2.4GHz concurrent) 802.11ax wireless access point, 4x4:4 streams, adaptive antennas, dual ports, onboard BLE and Zigbee, PoE support. Includes adjustable acoustic drop ceiling bracket. One Ethernet port is 2.5GbE. Does not include power adaptor
- Wi-Fi Standard : Wi-Fi 6 (802.11ax)
- MIMO Technology : 4x4 MU-MIMO
- Capacity : Manages up to 1024 client connections
- Suggested Use : Ultra-dense indoor environments. EG - Transit hubs, auditoriums, conference centers, large meeting halls, general enterprise spaces, and large classrooms
- Region : US
- Radios : 1x 5 GHz Client Access - 802.11ax (Wi-Fi 6), 4x4 MU-MIMO with 4 spatial streams, 1x 2.4 GHz Client Access - 802.11ax (Wi-Fi 6), 4x4 MU-MIMO with 4 spatial streams, 1x Zigbee (802.15.4)
- Spatial Streams per Radio : 4
- Maximum Data Rate : 2400 Mbps
- Bluetooth / IoT Radios : 1x Bluetooth Low Energy (BLE) - Integrated onboard BLE radio for IoT deployments, location-based services via SPoT, and asset tracking.
- PoE Standard : Power over Ethernet (802.3af/at/bt) with Category 5/5e/6 cable | 902-0180-US00 Power Injector not included
- DC Power Input : 902-1170-US00 Power Adapter not included

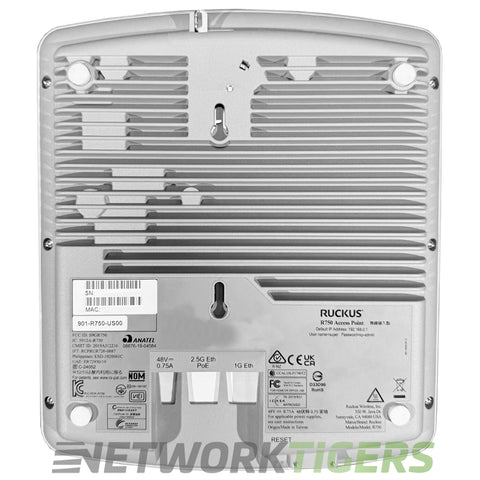

- Uplink Ports : 1x 2.5 Gigabit Ethernet RJ45, 1x 1 Gigabit Ethernet RJ45
- Other Ports : 1x USB Type A
- Antenna Type : Internal BeamFlex+ Adaptive Antenna
- Antenna Ports : N/A - Internal Antenna
- Antenna Options : BeamFlex+ Adaptive Antennas allow the R750 AP to dynamically choose among a host of antenna patterns (over 4,000 possible combinations) in real-time to establish the best possible connection with every device
- Mounting Options : 902-0120-0000 - Multipurpose/T-bar Torx mounting bracket, 902-0195-0000 - T-bar ceiling mount kit for flush-frame ceiling
- Mounts Included : Includes adjustable acoustic drop ceiling bracket
- Model Number : 901-R750-US00
- Part Number : 901-R750-US00
- Condition : New

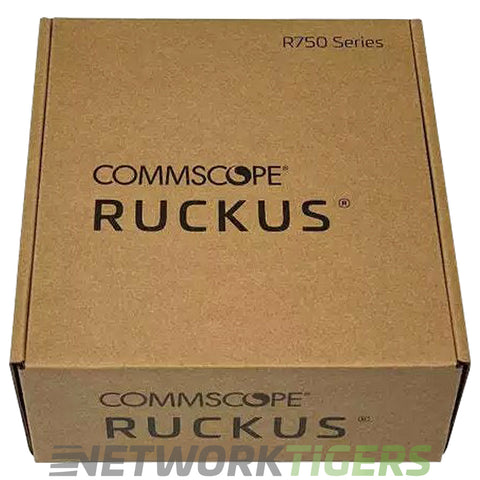

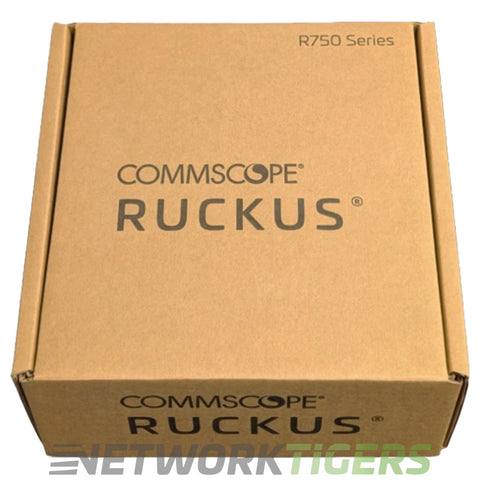

- One (1) NEW Ruckus 901-R750-US00 Wi-Fi 6 802.11ax Internal Antenna US WAP w/ Bracket as described above
