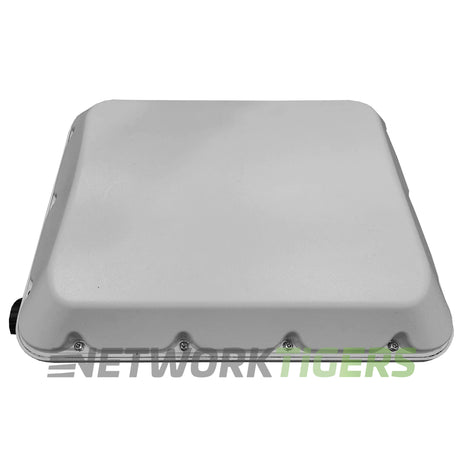

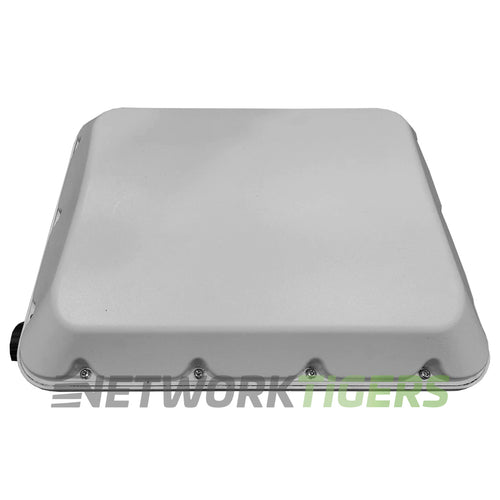

The Ruckus 901-T750-US51 is an outdoor Wi‑Fi 6 (802.11ax) wireless access point with an internal antenna design. It supports dual radios (2.4 GHz up to 1148 Mbps and 5 GHz up to 2400 Mbps) and includes 1x 2.5 Gigabit Ethernet port, 1x Gigabit Ethernet port, and SFP/SFP+ interfaces for 1 Gbps or 10 Gbps backhaul.
It is IP67 rated for outdoor use and supports management through SmartZone, ZoneDirector, Cloud, standalone, or Unleashed modes. The unit operates with 802.3at PoE, with full functionality requiring Class 7 power. Port options support copper and fiber uplinks. It is suited for high client density areas such as public venues and urban outdoor spaces.
Ruckus 901-T750-US51: RUCKUS T750SE Wi-Fi 6 Outdoor Wireless Access Point, 4x4:4 Stream, 120-Degree Sector antenna included and option to attach external antennae, 2.4GHz and 5GHz concurrent dual band, (1x) 2.5G Ethernet port, (1x) 10/100/1000 Ethernet ports, 100-240 Vac, POE in and PSE out, Fiber SFP/SFP+, GPS, IP-67 Outdoor enclosure, -40 to 65C Temperature.Mounting bracket included. Does not include a power adapter.
- Wi-Fi Standard : Wi-Fi 6 802.11ax
- Managed By : SmartZone, ZoneDirector, Cloud, Standalone, or Unleashed
- Suggested Use : Outdoor high density venues like airports, amusement parks, stadiums, outdoor arenas, and other dense urban environments, IP-67 rated for outdoor deployment
- Region : US
- Radios : 2x Radios, 1x 2.4GHz and 1x 5GHz, running dual concurrent
- Spatial Streams per Radio : 4x streams on both 2.4GHz and 5GHz using 4x4 by 4, for 8x total combined
- Maximum Data Rate : 1148 Mbps on 2.4GHz and 2400 Mbps on 5GHz
- Bluetooth / IoT Radios : Onboard BLE and Zigbee, with a pluggable IoT module for future expansion, this SKU includes GPS
- PoE Standard : 802.3at Class 7 for full functionality with PSE out, 802.3at with reduced functionality without PSE out is also supported - Optional 902-0180-XX00 (60W single-port) or 902-1180-XX00 (60W multi-gigabit, 2.5/5/10-BaseT) available separately
- Uplink Ports : 1x 2.5 Gigabit Ethernet (802.3at Class 7 PoE) RJ-45, and 1x 10/100/1000 Mbps Ethernet port, plus SFP and SFP+ fiber ports for 1Gbps or 10Gbps backhaul
- Other Ports : 1x GbE PoE output port (PSE) for daisy chaining devices like cameras or other APs, note this SE variant does not have a USB port
- Antenna Type : BeamFlex+ adaptive antennas with polarization diversity, internal 120-degree sectorized pattern with over 4000 unique patterns, up to 6.0dBi gain on 2.4GHz and 8.0dBi on 5GHz
- Antenna Ports : 4x N-type female connectors, with the option to attach external antennas
- Antenna Options : 911-2120-0000, 2.4GHz and 5GHz 14/14.5dBi 4-port directional H/V high gain antenna, with 30 degree beam width and 4x N-type female connectors
- Mounting Options : Pole Mount, Wall Mount, or Flat Surface mount, using bracket included in the box, optional 902-0134-0000 (weatherized aluminum, 180 degree adjustment) or 902-0125-0000 (secure articulating bracket) available separately
- Mounts Included : Mounting bracket is included in the box with the AP,
- Model Number : 901-T750-US51
- Part Number : 901-T750-US51
- Condition : Seller refurbished
- One (1) Seller refurbished Ruckus 901-T750-US51 Wi-Fi 6 802.11ax Internal Antenna Outdoor WAP w/ GPS as described above
- One (1) Set of Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Antennas Not Included
- Power Injector Not Included
