NEW Arista AP-C200 Wi-Fi 6 802.11ax Internal Omni Directional Antennas WAP

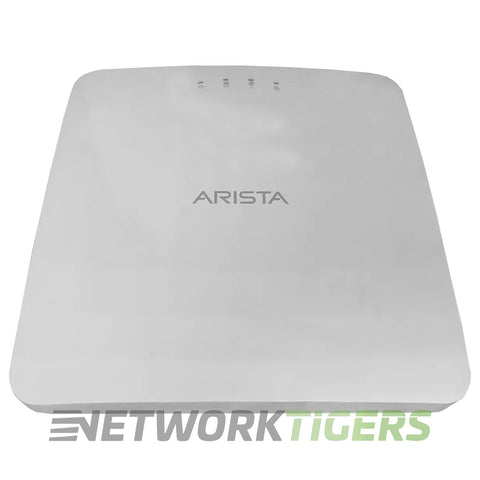

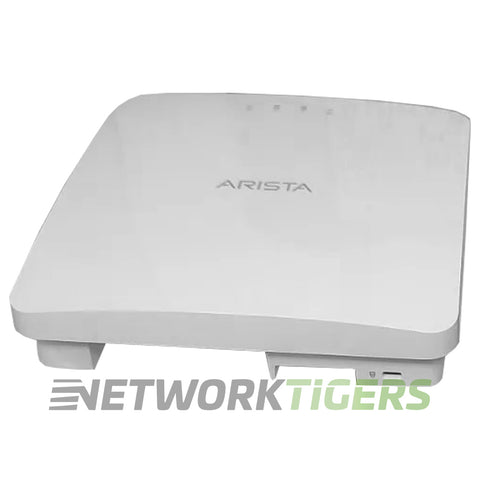

The Arista C-200 is a compact dual-radio Wi-Fi 6 (802.11ax) access point. It has a 2x2, 2 radio on 5GHz and a 2x2, 2 radio on 2.4GHz, for four spatial streams in total. Arista rates the 5GHz radio at up to 1.2 Gbps and the 2.4GHz radio at up to 574 Mbps.

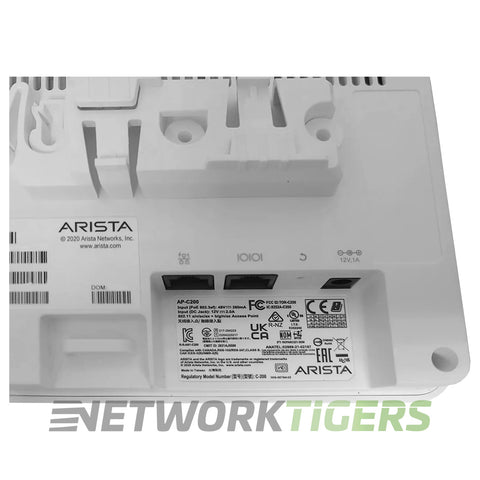

Wired connection is a single 1GbE RJ-45 port (LAN1) with PoE input, and there is an RJ-45 console port. The access point runs at full function on PoE, drawing 12.4W maximum and 11W on average, so it works from standard PoE switch ports. It can also take 12V DC input where PoE is not available.

Management is through Arista CloudVision CUE in the cloud, with zero-touch provisioning. The access point requires CloudVision Wi-Fi licensing for management, which is not included.

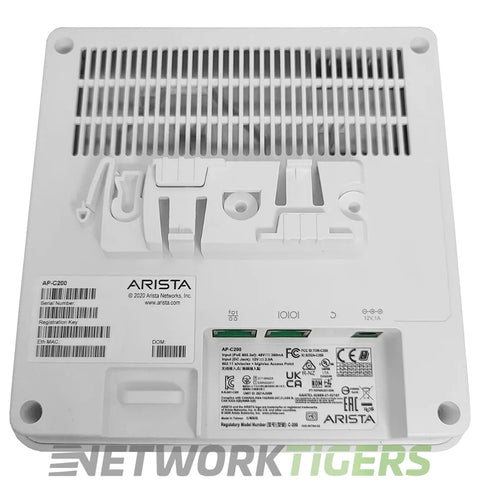

The unit measures 5.5 x 5.5 x 1.5 inches and weighs 1.1 lb. It supports wall and ceiling mounting with Arista brackets (MNT-AP-24MM, MNT-AP-15MM, MNT-AP-INTSIL and MNT-AP-FLAT-14CM), and it has a Kensington lock slot.

A seller refurbished AP-C200 is also available.

Plan the mounting location and PoE budget before installation, and check that your switch ports can supply the power the access point needs for full function.

This AP-C200 is new and covered by the NetworkTigers one-year warranty. The original packaging may have been opened to inspect the contents.
