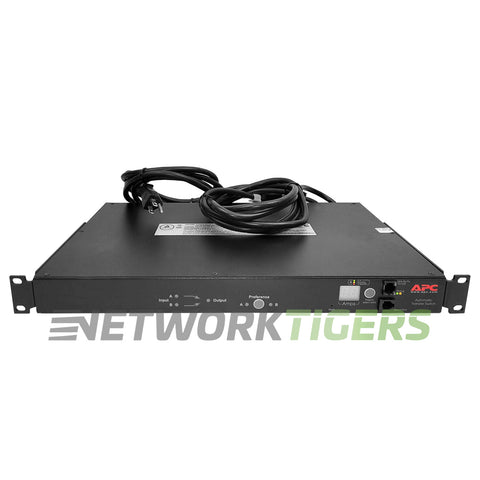

APC AP7750 120V 15A 8x NEMA 5-15R Rack Mount Automatic Transfer Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-0141
UPC: 731304199380

Overview

The APC AP7750 120V 15A Automatic Transfer Switch (ATS) is a reliable solution for seamless power redundancy in rack-mounted systems. It features eight NEMA 5-15R outlets, allowing you to connect multiple devices simultaneously. This transfer switch is perfect for data centers or server rooms with its easy-to-install and space-saving design.

This product automatically switches between primary and secondary power sources without interrupting the current flow during transfers. This ensures continuous operation of your critical equipment even if one power source fails.

With state-of-the-art technology, the APC AP7750 offers advanced monitoring capabilities, such as remote retrieval of vital utility information through an integrated network card interface (optional). It supports real-time status updates via LED indicators on the front panel.


Specifications

  • Nominal Output Voltage : 120 VAC (Acceptable input voltage 100-125V)
  • Maximum Total Current Draw per Phase : 15A
  • Output Connections : Eight (8) NEMA 5-15R
  • Input Connections : NEMA 5-15P
  • Load Capacity : 1440 VA
  • Number of Power Cords : Two (2)
  • Cord Length : 8-feet
  • Network Management Card : One (1) AP9617
  • Form Factor : 1U Rackmount
  • Rackmount Brackets : Included
  • Accessories : Not included
  • Model Number : AP7750
  • Part Number : AP7750
  • Condition : New


Included

  • One (1) NEW APC Rackmount Transfer Switch AP7750 as described above
  • One (1) Set Rackmount Brackets Included
