APC AP7940 Switched Rack 200-208V 20A 3x C19 21x C13 Zero U PDU

APC AP7940 Switched Rack 200-208V 20A 3x C19 21x C13 Zero U PDU

$ 189.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.   Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-0157
UPC: 731304220848

Overview

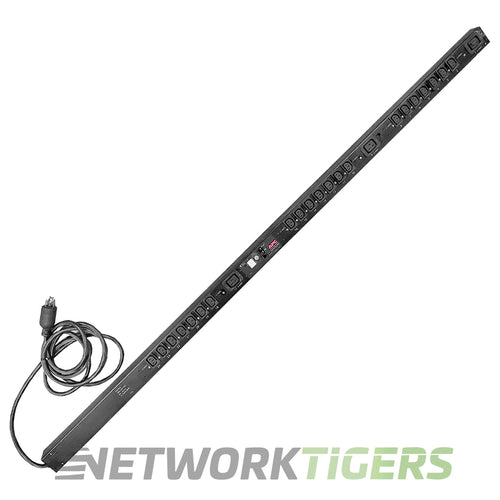

The APC AP7940 Switched Rack PDU is a reliable power distribution unit designed to support 200-208V input voltage with a capacity of 20A. This Zero U rack-mountable device offers convenient power control and monitoring features, making it an excellent choice for data centers or server rooms.

Equipped with three C19 and twenty-one C13 outlets, this PDU provides ample connectivity options to suit various devices' requirements. Combining these outlet types ensures compatibility with different equipment without the need for adapters.

With its switched functionality, users can remotely manage individual outlets via remote network access or locally using the built-in digital display interface. Advanced metering capabilities enable real-time current monitoring per phase—an invaluable feature when managing power consumption efficiently.

APC AP7940: 3x IEC 60320 C19, 21x IEC 60320 C13 Output connections and 1x NEMA L6-20P input connection. This PDU is a Switched Rack.


Specifications

  • Power Output Connections : 3x IEC 60320 C19, 21x IEC 60320 C13
  • Power Output Voltage : 200V, 208V
  • Input Connection : 1x NEMA L6-20P
  • Input Voltage : 200V, 208V, 230V
  • Input Frequency : 50/60 Hz
  • Input Amperage : 20A
  • Load Capacity : 3328VA
  • Regulatory Derated Input Current (North America) : 16A
  • Form Factor : Zero U
  • Model Number : AP7940
  • Part Number : AP7940
  • Condition : Seller refurbished

Datasheet

More information on this APC AP7940.

Included

  • One (1) Seller refurbished APC AP7940 Switched Rack 200-208V 20A 3x C19 21x C13 Zero U PDU as described above
  • One (1) Set Round Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
