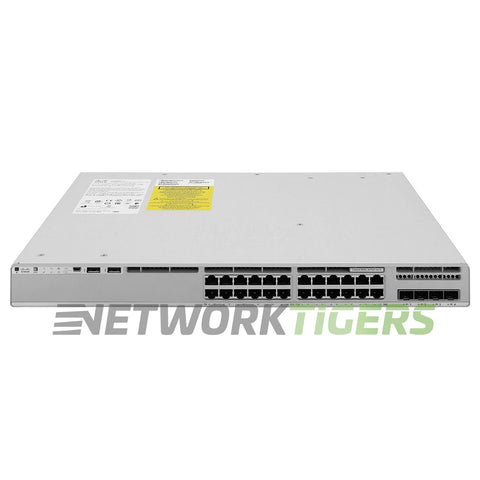

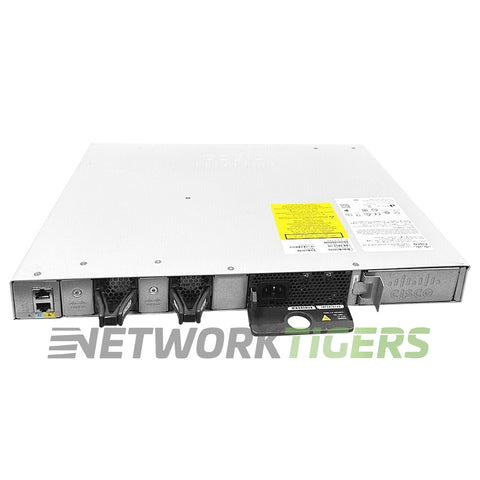

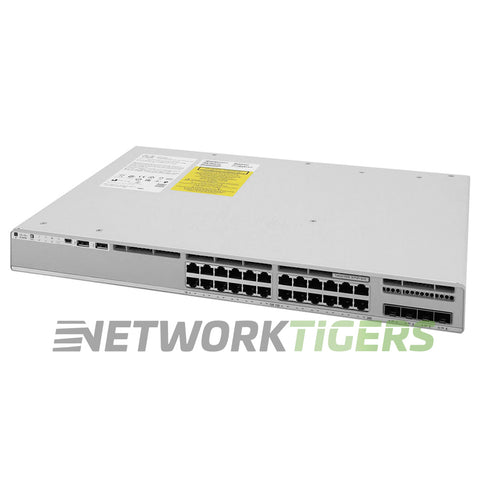

The Cisco C9200-24PXG-E Switch is designed for high-performance networking environments. With 16x 1GB PoE+ RJ45 ports, 8x MultiGB PoE+ RJ45 ports, and a modular slot for additional expansion capabilities, this switch provides flexibility to meet changing business needs.
The switch offers a generous PoE budget of up to 370W with the primary power supply unit and up to an impressive 740W when utilizing the secondary PSU option.
Featuring a switching capacity of 352 Gbps (532 Gbps with stacking) and a forwarding rate of up to 261.90 Mpps (395 Mpps w/ Stacking), this switch ensures fast data transfer speeds even in demanding network environments. The MAC Address Table Size supports up to 32,000 entries, and ultra-low latency optimizes performance for your critical applications making it a suitable choice for medium-sized enterprise deployments.
Cisco C9200-24PXG-E: Catalyst 9200 24-port 8xmGig, 16x1G, PoE+.
- Network Ports : 16x 1 Gigabit Ethernet PoE+ RJ45, 8x Multi Gigabit Ethernet PoE+ RJ45
- SMARTnet : If you are planning to put this under SMARTnet, please ask before purchasing. We cannot guarantee that the unit will be SMARTnet eligible unless checked prior to purchase.
- Management Ports : 1x RJ45 Console, 1x 1 Gigabit Management, 2x USB, 1x Mini USB
- Stacking Ports : StackWise-160 possible through the use of C9200-STACK-KIT - Ordered Separately
- Stacking Options : Stacking Bandwidth = 160 Gbps - This switch cannot be stacked with fixed C9200 models or other Catalyst switches
- Stacking Cable Options : STACK-T4-50CM (Default with C9200-STACK-KIT), STACK-T4-1M, STACK-T4-3M
- Module Slots : 1x Expansion Module Slot - Module not Included
- Module Options : C9200-NM-2Y (2x 25G), C9200-NM-2Q (2x 40GB QSFP), C9200-NM-4X (4x 1G/10G SFP), C9200-NM-BLANK - None Included - Ordered Separately
- Switch Version : Network Essentials
- AirFlow Direction : Front-to-Back Airflow (Standard)
- Fan Module Options : 2x C9200-FAN Fan Modules Included
- Power Supplies Included : 1x PWR-C6-600WAC Included - 2x Slots - 2nd PSU ordered separately
- Power Supply Options : PWR-C6-600WAC, PWR-C5-BLANK, PWR-C6-715WDC
- PoE Budget : 370W (w/ Single Primary PSU), 740W (w/ Secondary PSU)
- Switching Capacity : 352 Gbps (532 Gbps w/ Stacking)
- Forwarding Rate : 261.90 Mpps (395 Mpps w/ Stacking)
- MAC Address Table Size : 32,000
- VLAN ID's : 4096
- DRAM and Flash : 4 GB DRAM, 4 GB Flash
- Model Number : C9200-24PXG-E
- Part Number : C9200-24PXG-E
- Condition : New
- One (1) NEW Cisco C9200-24PXG-E 16x 1GB PoE+ RJ45 8x MultiGB PoE+ RJ45 1x ModSlot Switch as described above
