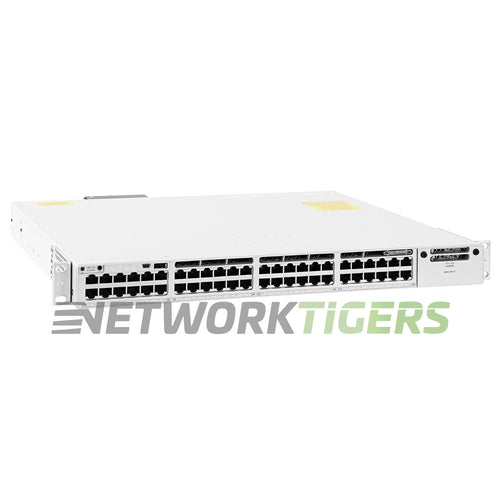

This seller refurbished Cisco Catalyst C9300-48U-A (Network Advantage version) is a 48-port Gigabit UPOE access switch that delivers up to 60W per port for access points, IP phones, and compact switches, with a module slot for uplinks.
- Budget from 822W to 1,800W: The default 1100W supply provides 822W of PoE. A second 1100W supply raises the budget to 1,800W, the most Cisco lists for this model.
- Slot options for uplinks: The slot takes C9300-NM-4M (4x Multigigabit), C9300-NM-2Y (2x 25G/10G/1G), C9300-NM-4G (4x 1G), C9300-NM-2Q (2x 40G), or C9300-NM-8X (8x 10G/1G) modules.
- Stacking with StackPower: Stack up to eight switches over 480 Gbps cables, with StackPower pooling supplies across up to four of them, or eight with an XPS-2200.
- Swap parts, add a supply: Two power supply bays take a second supply, and the three fans (FAN-T2, N+1) can be replaced in the field.
Compare: Don't need PoE? The C9300-48T-A is data-only. Want fixed 10G uplinks with UPOE? The C9300L-48UXG-4X-A has four 10G/1G SFP+ uplinks.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 48x 1 Gigabit Ethernet UPoE RJ45
- Management Ports : 1x RS-232 RJ45 Console, 1x Gigabit Ethernet Management, 1x USB 2.0 for configuration
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
- Stacking Cable Options : Cables sold separately - Cable Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power)
- Module Slots : 1x Expansion Module Slot - None Included - Sold separately
- Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
- Switch Version : Network Advantage
- Fan Module Options : 3x FAN-T2 Field Replaceable Fans Included
- Power Supplies Included : 1x PWR-C1-1100WAC Included - 2x PSU Slots
- Power Supply Options : Options for 2nd PSU are - PWR-C1-350WAC, PWR-C1-715WAC or PWR-C1-1100WAC
- PoE Budget : 822W (w/ Default PSU), 1172W (w/ 350W 2nd PSU), 1537W (w/ 715W 2nd PSU), 1800W (w/ 1100W 2nd PSU)
- Switching Capacity : 256 Gbps (736 Gbps with Stacking)
- Forwarding Rate : 190.48 Mpps (547.62 Mpps with Stacking)
- MAC Address Table Size : 32,000
- DRAM and Flash : DRAM 8GB, 16GB Flash
- Model Number : C9300-48U-A
- Part Number : C9300-48U-A, C9300-48U-A=, C9300-48U-A-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300-48U-A Catalyst 9300 48x 1GB UPoE RJ45 1x Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
