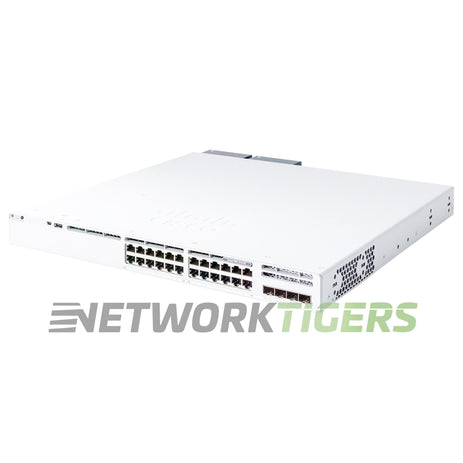

Combining 24 Gigabit data ports with four fixed 10G/1G SFP+ uplinks, the seller refurbished Cisco Catalyst C9300L-24T-4X-A (Network Advantage version) is a stackable access switch for offices, schools, and retail sites that need wired data without PoE.
- Stack to 192 data ports: Eight switches joined with the optional kit give 192 Gigabit ports. Stacked switching capacity reaches 448 Gbps, with 333.33 Mpps of forwarding.
- Rack tags and weight: An embedded RFID tag and a blue beacon LED aid inventory. The chassis weighs 14.93 lb (6.78 kg), and its MTBF is 387,700 hours.
- Data ports, no PoE: All 24 ports are 1000BASE-T. No PoE is offered, and the default supply is the 350W PWR-C1-350WAC-P.
- Four fast uplinks: The four SFP+ uplinks are fixed at 10G/1G, with no module slot, and take LC fiber transceivers.
Compare: Need to power endpoints? The C9300L-24P-4X-A adds 505W of PoE. Want more ports? The C9300L-48T-4X-A has 48 copper ports.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 24x 1 Gigabit Ethernet RJ-45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 2x USB, 1x Mini USB
- Stacking Ports : 2x StackWise-320 connectors (on the rear of switch) - Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately
- Stacking Options : Only other C9300L SKUs with same license level. Number of stack members = 8. Stacking Bandwidth = 320 Gbps
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Switch Version : Network Advantage
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-350WAC-P Power Supply Included - 2nd Power Supply ordered separately.
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P
- Switching Capacity : 128 Gbps (Switching Capacity with Stacking - 448 Gbps)
- Forwarding Rate : 95.23 Mpps (Forwarding Rate with Stacking - 333.33 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-24T-4X-A
- Part Number : C9300L-24T-4X-A, C9300L-24T-4X-A=, C9300L-24T-4X-A-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300L-24T-4X-A Catalyst 9300L 24x 1GB RJ45 4x 10GB SFP+ Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
