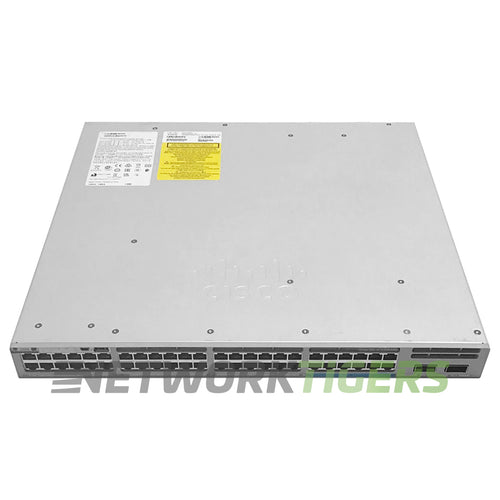

Pairing 12 Multigigabit ports with 36 Gigabit ports under Cisco UPOE, the seller refurbished Cisco Catalyst C9300L-48UXG-2Q-A (Network Advantage version) is an access switch with two fixed 40G uplinks for Wi-Fi 6 access point closets.
- Two 40G QSFP+ uplinks: The uplinks are built in at 40G, with MPO and LC fiber connectors, which sets this model apart from the four 10G/1G SFP+ uplinks on the C9300L-48UXG-4X.
- Stack cables, 0.5m to 3m: The optional stack kit has two adapters and a 0.5m cable, with 1m and 3m cables also offered for stacks of up to eight.
- Memory and storage: The switch has 8 GB of memory and 16 GB of flash, plus a USB 3.0 slot for an SSD of up to 240 GB.
- PoE with a 350W partner: A 350W second supply raises the 675W default PoE budget to 1,025W.
Compare: Want 10G uplinks instead? The C9300L-48UXG-4X-A has four 10G/1G SFP+ uplinks. Want half the ports? The C9300L-24UXG-2Q-A has 24 UPOE ports.
What ships with this unit is listed under What's Included. See all Cisco Catalyst 9300 switches and parts.
Every unit is tested before it ships and is covered by our 365-day warranty. Need several, or a matched set with power supplies and fans? Ask us for a quote.
- Network Ports : 36x Gigabit Ethernet RJ45 UPOE, 12x MultiGigabit Ethernet RJ45
- Uplink Ports : 2x 40 Gigabit Ethernet QSFP+
- Management Ports : 2x USB, 1x Mini USB
- Stack Technology : StackWise-320
- Stacking Options : C9300L-STACK-KIT - Ordered Separately
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Supported Stack Members : Other C9300L SKUs with same license level (Number of Members - 8)
- Switch Version : Network Advantage
- Fan Module Options : 3x FAN-T2 Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC-P Included - 2nd Power Supply ordered separately.
- Power Supply Options : PWR-C1-350WAC-P, PWR-C1-715WAC-P, PWR-C1-1100WAC-P - Not Included
- PoE Budget : 675W
- Switching Capacity : 472 Gbps (Switching Capacity with Stacking - 792 Gbps)
- Forwarding Rate : 351.19 Mpps (Forwarding Rate with Stacking - 589.28 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-48UXG-2Q-A
- Part Number : C9300L-48UXG-2Q-A, C9300L-48UXG-2Q-A=, C9300L-48UXG-2Q-A-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300L-48UXG-2Q-A 48x 1GB UPoE RJ45 (12x MultiGB) 2x 40GB QSFP+ Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
